lsquic/BoringSSL-based HTTP/3 client for CWIST. More...

#include <cwist/net/http/http3_client.h>
#include <cwist/core/mem/alloc.h>
#include <cwist/sys/err/cwist_err.h>
#include "h3_hdr_out.h"
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <errno.h>
#include <fcntl.h>
#include <arpa/inet.h>
#include <netdb.h>
#include <sys/socket.h>
#include <sys/uio.h>
#include <poll.h>
#include <pthread.h>
#include <ctype.h>
#include <strings.h>
#include <openssl/ssl.h>
#include <openssl/x509.h>
#include <openssl/evp.h>
#include <lsquic.h>
#include <lsxpack_header.h>

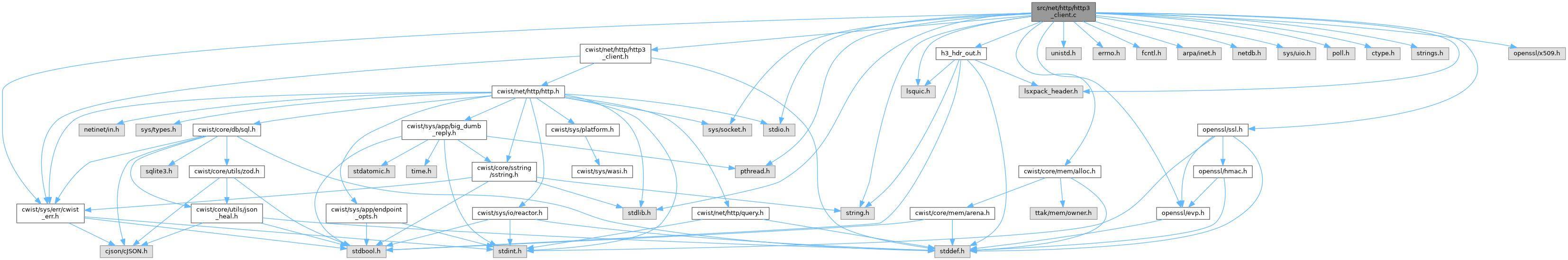

Include dependency graph for http3_client.c:

Go to the source code of this file.

Macros
#define	_POSIX_C_SOURCE 200809L

#define	MSG_DONTWAIT 0

#define	H3C_MAX_HEADERS 64

#define	H3C_DECODE_BUF_SIZE 65536

Typedefs
typedef struct h3c_stream_ctx	h3c_stream_ctx_t

typedef struct h3c_hset	h3c_hset_t

Functions
cwist_http3_client *	cwist_http3_client_create (void)

void	cwist_http3_client_destroy (cwist_http3_client *client)

int	cwist_http3_client_set_server (cwist_http3_client client, const char host, uint16_t port)
	Set server address for subsequent requests.

int	cwist_http3_client_set_ca_bundle (cwist_http3_client client, const char ca_path)
	Load CA bundle for TLS certificate verification.

void	cwist_http3_client_set_insecure (cwist_http3_client *client, int enabled)
	Disable or re-enable TLS certificate verification.

void	cwist_http3_client_set_timeout_ms (cwist_http3_client *client, int timeout_ms)
	Set request timeout in milliseconds.

void	cwist_http3_client_enable_0rtt (cwist_http3_client *client, int enabled)
	Enable or disable 0-RTT session resumption.

void	cwist_http3_client_enable_datagrams (cwist_http3_client *client, int enabled)
	Enable or disable QUIC datagram support (RFC 9221).

cwist_error_t	cwist_http3_client_request (cwist_http3_client client, const char path, cwist_http_method_t method, cwist_http_header_node headers, const char body, size_t body_len, cwist_http_response **out_response)
	Perform a synchronous HTTP/3 request.

int	cwist_http3_client_send_datagram (cwist_http3_client client, const void data, size_t len)
	Send an unreliable QUIC datagram.

ssize_t	cwist_http3_client_recv_datagram (cwist_http3_client client, void buf, size_t len)
	Receive an unreliable QUIC datagram.

void	cwist_http3_client_set_max_retries (cwist_http3_client *client, int max_retries)
	Set the maximum number of request retries on transient failure.

void	cwist_http3_client_set_retry_delay_ms (cwist_http3_client *client, int delay_ms)
	Set the base delay between retries in milliseconds.

void	cwist_http3_client_set_conn_timeout_ms (cwist_http3_client *client, int timeout_ms)
	Set the connection establishment / stream creation timeout.

Detailed Description

lsquic/BoringSSL-based HTTP/3 client for CWIST.

Definition in file http3_client.c.

Macro Definition Documentation

◆ _POSIX_C_SOURCE

#define _POSIX_C_SOURCE 200809L

Definition at line 12 of file http3_client.c.

◆ H3C_DECODE_BUF_SIZE

#define H3C_DECODE_BUF_SIZE 65536

Definition at line 208 of file http3_client.c.

◆ H3C_MAX_HEADERS

#define H3C_MAX_HEADERS 64

Definition at line 207 of file http3_client.c.

◆ MSG_DONTWAIT

#define MSG_DONTWAIT 0

Definition at line 51 of file http3_client.c.

Typedef Documentation

◆ h3c_hset_t

typedef struct h3c_hset h3c_hset_t

◆ h3c_stream_ctx_t

typedef struct h3c_stream_ctx h3c_stream_ctx_t

Function Documentation

◆ cwist_http3_client_create()

cwist_http3_client * cwist_http3_client_create ( void )

Definition at line 784 of file http3_client.c.

References cap, SSL_CTX_free, SSL_CTX_new, SSL_CTX_set_default_verify_paths, SSL_CTX_set_min_proto_version, SSL_CTX_set_verify, SSL_VERIFY_PEER, and TLS1_3_VERSION.

◆ cwist_http3_client_destroy()

void cwist_http3_client_destroy ( cwist_http3_client * client )

Definition at line 870 of file http3_client.c.

References cap, and SSL_CTX_free.

◆ cwist_http3_client_enable_0rtt()

void cwist_http3_client_enable_0rtt	(	cwist_http3_client *	client,
		int	enabled
	)

Enable or disable 0-RTT session resumption.

When enabled, the client attempts to send application data in the first flight if a previous session ticket is available.

Parameters

client	Client handle.
enabled	Non-zero to enable (default: 0).

Definition at line 924 of file http3_client.c.

References cap.

◆ cwist_http3_client_enable_datagrams()

void cwist_http3_client_enable_datagrams	(	cwist_http3_client *	client,
		int	enabled
	)

Enable or disable QUIC datagram support (RFC 9221).

When enabled, unreliable datagrams can be sent and received via cwist_http3_client_send_datagram() / recv_datagram().

Parameters

client	Client handle.
enabled	Non-zero to enable (default: 0).

Definition at line 929 of file http3_client.c.

◆ cwist_http3_client_recv_datagram()

ssize_t cwist_http3_client_recv_datagram	(	cwist_http3_client *	client,
		void *	buf,
		size_t	len
	)

Receive an unreliable QUIC datagram.

Non-blocking. If no datagram is available, returns -1 with errno set to EAGAIN.

Parameters

client	Client handle.
buf	Buffer to store payload.
len	Buffer capacity.

Returns: Number of bytes received, or -1 on error.

Definition at line 1185 of file http3_client.c.

References cap.

◆ cwist_http3_client_request()

cwist_error_t cwist_http3_client_request	(	cwist_http3_client *	client,
		const char *	path,
		cwist_http_method_t	method,
		cwist_http_header_node *	headers,
		const char *	body,
		size_t	body_len,
		cwist_http_response **	out_response
	)

Perform a synchronous HTTP/3 request.

Establishes a QUIC connection if none exists, sends the request, and blocks until the complete response is received or the timeout expires.

Parameters

client	Client handle.
path	Request path (e.g. "/index.html").
method	HTTP method enum.
headers	Optional request headers (may be NULL).
body	Optional request body (may be NULL).
body_len	Length of `body`.
out_response	Output pointer for parsed response.

Returns: CWIST error, err_i16 == 0 on success.

Definition at line 937 of file http3_client.c.

References cap, CWIST_ERR_INT16, cwist_http_response_destroy(), make_error(), and cwist_http_header_node::next.

◆ cwist_http3_client_send_datagram()

int cwist_http3_client_send_datagram	(	cwist_http3_client *	client,
		const void *	data,
		size_t	len
	)

Send an unreliable QUIC datagram.

Requires datagrams to be enabled. The datagram is delivered on a best-effort basis and may be silently dropped by the network.

Parameters

client	Client handle.
data	Datagram payload.
len	Payload length.

Returns: 0 on success, -1 on failure.

Definition at line 1162 of file http3_client.c.

References cap.

◆ cwist_http3_client_set_ca_bundle()

int cwist_http3_client_set_ca_bundle	(	cwist_http3_client *	client,
		const char *	ca_path
	)

Load CA bundle for TLS certificate verification.

Parameters

client	Client handle.
ca_path	Path to PEM CA bundle, or NULL to reload the system default trust store. Verification stays enabled either way; use cwist_http3_client_set_insecure() to opt out.

Returns: 0 on success, -1 on failure.

Definition at line 904 of file http3_client.c.

References cap, and SSL_CTX_set_default_verify_paths.

◆ cwist_http3_client_set_conn_timeout_ms()

void cwist_http3_client_set_conn_timeout_ms	(	cwist_http3_client *	client,
		int	timeout_ms
	)

Set the connection establishment / stream creation timeout.

This controls how long the client waits for the QUIC handshake and stream creation before giving up. Default is 5000 ms.

Parameters

client	Client handle.
timeout_ms	Timeout in milliseconds.

Definition at line 1214 of file http3_client.c.

◆ cwist_http3_client_set_insecure()

void cwist_http3_client_set_insecure	(	cwist_http3_client *	client,
		int	enabled
	)

Disable or re-enable TLS certificate verification.

Verification is ON by default. Opt out explicitly for self-signed development setups; opting out trusts any server certificate.

Parameters

client	Client handle.
enabled	Non-zero to disable verification (default: 0).

Definition at line 915 of file http3_client.c.

References cap, SSL_CTX_set_verify, SSL_VERIFY_NONE, and SSL_VERIFY_PEER.

◆ cwist_http3_client_set_max_retries()

void cwist_http3_client_set_max_retries	(	cwist_http3_client *	client,
		int	max_retries
	)

Set the maximum number of request retries on transient failure.

When a request fails due to timeout or connection loss, the client will retry up to max_retries times with exponential backoff. Default is 0 (no retries).

Parameters

client	Client handle.
max_retries	Maximum retry count (0 to disable).

Definition at line 1206 of file http3_client.c.

◆ cwist_http3_client_set_retry_delay_ms()

void cwist_http3_client_set_retry_delay_ms	(	cwist_http3_client *	client,
		int	delay_ms
	)

Set the base delay between retries in milliseconds.

The actual delay is doubled on each retry (1x, 2x, 4x, ...). Default is 1000 ms.

Parameters

client	Client handle.
delay_ms	Base delay in milliseconds.

Definition at line 1210 of file http3_client.c.

References cap.

◆ cwist_http3_client_set_server()

int cwist_http3_client_set_server	(	cwist_http3_client *	client,
		const char *	host,
		uint16_t	port
	)

Set server address for subsequent requests.

Parameters

client	Client handle.
host	Server hostname (used for SNI and :authority).
port	Server UDP port.

Returns: 0 on success, -1 on failure.

Definition at line 894 of file http3_client.c.

References cap.

◆ cwist_http3_client_set_timeout_ms()

void cwist_http3_client_set_timeout_ms	(	cwist_http3_client *	client,
		int	timeout_ms
	)

Set request timeout in milliseconds.

Parameters

client	Client handle.
timeout_ms	Timeout, 0 for default (30000).

Definition at line 920 of file http3_client.c.
