builder.h File Reference

HTML element builder and renderer. More...

#include <cwist/core/sstring/sstring.h>
#include <cjson/cJSON.h>

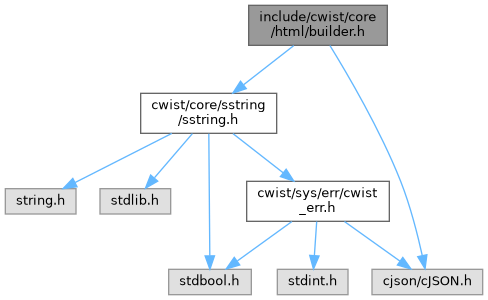

Include dependency graph for builder.h:

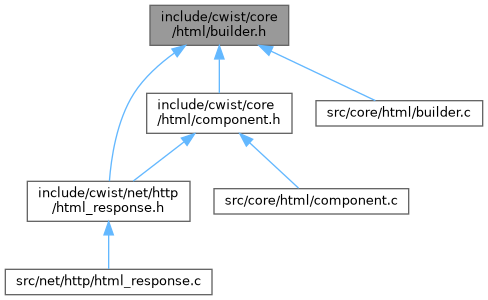

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	cwist_html_element

Typedefs
typedef struct cwist_html_element	cwist_html_element_t

Functions
Element creation and destruction
cwist_html_element_t *	cwist_html_element_create (const char *tag)
	Create a new HTML element.
void	cwist_html_element_destroy (cwist_html_element_t *el)
	Destroy an HTML element and its children.
Attribute manipulation
void	cwist_html_element_add_attr (cwist_html_element_t *el, const char *key, const char *value)
	Add an attribute to an element.
void	cwist_html_element_set_id (cwist_html_element_t *el, const char *id)
	Set the id attribute.
void	cwist_html_element_add_class (cwist_html_element_t *el, const char *class_name)
	Add a CSS class.
Content and children
void	cwist_html_element_set_text (cwist_html_element_t *el, const char *text)
	Set inner text.
void	cwist_html_element_add_child (cwist_html_element_t *el, cwist_html_element_t *child)
	Add a child element.
Rendering
cwist_sstring *	cwist_html_render (cwist_html_element_t *el)
	Render the element tree to an HTML string.

Detailed Description

HTML element builder and renderer.

Definition in file builder.h.

Typedef Documentation

cwist_html_element_t

typedef struct cwist_html_element cwist_html_element_t

Function Documentation

cwist_html_element_add_attr()

void cwist_html_element_add_attr	(	cwist_html_element_t *	el,
		const char *	key,
		const char *	value
	)

Add an attribute to an element.

Add an attribute to an element.

Parameters

el	Element to update.
key	Attribute name, for example "class".
value	Attribute value stored as a cJSON string node.

Definition at line 61 of file builder.c.

References cwist_html_element::attributes.

Referenced by cwist_html_element_add_class(), cwist_html_element_set_id(), and cwist_http_response_add_oob().

cwist_html_element_add_child()

void cwist_html_element_add_child	(	cwist_html_element_t *	el,
		cwist_html_element_t *	child
	)

Add a child element.

Add a child element.

Parameters

el	Parent element that will own the child.
child	Child node to append.

Definition at line 124 of file builder.c.

References cwist_html_element::child_count, cwist_html_element::children, and cwist_realloc().

cwist_html_element_add_class()

void cwist_html_element_add_class	(	cwist_html_element_t *	el,
		const char *	class_name
	)

Add a CSS class.

Add a CSS class.

Parameters

el	Element to update.
class_name	Class token to append or initialise.

Definition at line 85 of file builder.c.

References cwist_html_element::attributes, cwist_html_element_add_attr(), cwist_sstring_append(), cwist_sstring_assign(), cwist_sstring_create(), cwist_sstring_destroy(), and cwist_sstring::data.

cwist_html_element_create()

cwist_html_element_t * cwist_html_element_create

(

const char *

tag

)

Create a new HTML element.

Create a new HTML element.

Parameters

tag	Tag name to copy into the node, such as "div" or "span".

Returns

Newly allocated element, or NULL when allocation fails.

Definition at line 19 of file builder.c.

References cwist_html_element::attributes, cwist_html_element::child_count, cwist_html_element::children, cwist_alloc(), cwist_sstring_assign(), cwist_sstring_create(), cwist_html_element::inner_text, and cwist_html_element::tag.

cwist_html_element_destroy()

void cwist_html_element_destroy

(

cwist_html_element_t *

el

)

Destroy an HTML element and its children.

Destroy an HTML element and its children.

Parameters

el	Element tree root to release. NULL is ignored.

Definition at line 37 of file builder.c.

References cwist_html_element::attributes, cwist_html_element::child_count, cwist_html_element::children, cwist_free(), cwist_html_element_destroy(), cwist_sstring_destroy(), cwist_html_element::inner_text, and cwist_html_element::tag.

Referenced by cwist_html_component_instantiate(), cwist_html_element_destroy(), cwist_http_response_add_oob(), cwist_http_response_set_html(), and cwist_http_response_set_view().

cwist_html_element_set_id()

void cwist_html_element_set_id	(	cwist_html_element_t *	el,
		const char *	id
	)

Set the id attribute.

Set the id attribute.

Parameters

el	Element to update.
id	Identifier value to assign.

Definition at line 76 of file builder.c.

References cwist_html_element_add_attr().

cwist_html_element_set_text()

void cwist_html_element_set_text	(	cwist_html_element_t *	el,
		const char *	text
	)

Set inner text.

Set inner text.

Parameters

el	Element to update.
text	Plain-text payload to store.

Definition at line 108 of file builder.c.

References cwist_sstring_assign(), cwist_sstring_create(), and cwist_html_element::inner_text.

cwist_html_render()

cwist_sstring * cwist_html_render

(

cwist_html_element_t *

el

)

Render the element tree to an HTML string.

Void elements (area, base, br, col, embed, hr, img, input, link, meta, source, track, wbr; any letter case) are written as a start tag only: they get no end tag, and text or children attached to them are not rendered.

Render the element tree to an HTML string.

Parameters

el	Root element to serialise.

Returns

Rendered HTML buffer, or NULL when the root is invalid.

Definition at line 219 of file builder.c.

References cwist_sstring_assign(), and cwist_sstring_create().
