TCP-like sequenced message fragmentation and reassembly. More...

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

Include dependency graph for seq.h:

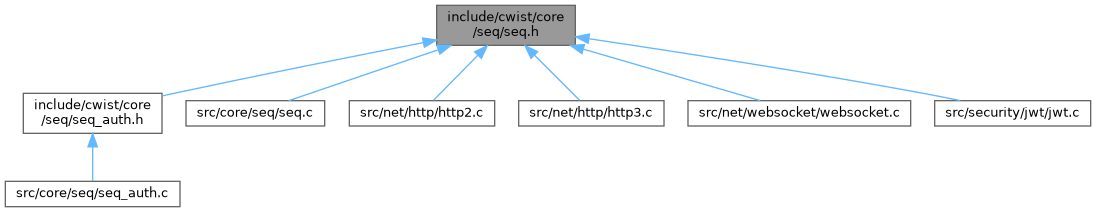

This graph shows which files directly or indirectly include this file:

Classes
struct	cwist_seq_chunk
	Parsed view of one sequenced chunk. More...

struct	cwist_seq_message
	Split a message into sequenced chunks. More...

Macros
#define	CWIST_SEQ_HEADER_SIZE 8

#define	CWIST_SEQ_DEFAULT_CHUNK_PAYLOAD 1024

#define	CWIST_SEQ_MAX_CHUNKS 8192

#define	CWIST_SEQ_MAX_REASSEMBLED_SIZE (64U * 1024U * 1024U)

Typedefs
typedef struct cwist_seq_chunk	cwist_seq_chunk_t
	Parsed view of one sequenced chunk.

typedef struct cwist_seq_message	cwist_seq_message_t
	Split a message into sequenced chunks.

typedef struct cwist_seq_assembler	cwist_seq_assembler_t
	Opaque stateful assembler that reorders chunks and detects duplicates.

Functions
bool	cwist_seq_chunk_parse (const uint8_t data, size_t len, cwist_seq_chunk_t out)
	Parse a sequence chunk from raw bytes.

void	cwist_seq_chunk_build_header (uint8_t out[CWIST_SEQ_HEADER_SIZE], uint16_t seq, uint16_t total, uint16_t payload_len, uint16_t chunk_size)
	Write an 8-byte sequence header.

bool	cwist_seq_split (const uint8_t data, size_t len, uint16_t chunk_payload_size, cwist_seq_message_t out)
	Split `data` into sequenced chunks.

void	cwist_seq_message_free (cwist_seq_message_t *msg)
	Free all buffers allocated by cwist_seq_split().

cwist_seq_assembler_t *	cwist_seq_assembler_create (void)
	Create an empty assembler.

cwist_seq_assembler_t *	cwist_seq_assembler_create_limited (size_t max_data_len)
	Create an assembler with a maximum possible reassembled size.

void	cwist_seq_assembler_destroy (cwist_seq_assembler_t *a)
	Destroy an assembler and its internal buffer.

bool	cwist_seq_assembler_feed (cwist_seq_assembler_t a, const cwist_seq_chunk_t chunk)
	Feed one parsed chunk into the assembler.

bool	cwist_seq_assembler_is_complete (const cwist_seq_assembler_t *a)
	Return true when every expected chunk has been received.

size_t	cwist_seq_assembler_recovery_targets (const cwist_seq_assembler_t a, uint16_t out, size_t out_cap)
	Return the sequence numbers still required to complete a message.

bool	cwist_seq_assembler_get_data (cwist_seq_assembler_t a, const uint8_t out_data, size_t out_len)
	Borrow the assembled message when complete.

void	cwist_seq_assembler_reset (cwist_seq_assembler_t *a)
	Reset an assembler so it can receive a new message.

Detailed Description

TCP-like sequenced message fragmentation and reassembly.

Splits large payloads into small numbered chunks, transmits them, and reassembles them even when they arrive out of order. It also exposes the exact missing sequence numbers so a transport can request retransmission rather than treating a partially assembled body as complete.

Chunk wire format (8 bytes, big-endian): seq uint16_t 1-based sequence number total uint16_t total number of chunks in this message payload_len uint16_t bytes in this chunk chunk_size uint16_t payload bytes in a full chunk

Definition in file seq.h.

Macro Definition Documentation

◆ CWIST_SEQ_DEFAULT_CHUNK_PAYLOAD

#define CWIST_SEQ_DEFAULT_CHUNK_PAYLOAD 1024

Default payload size for each chunk when the caller does not care.

Definition at line 32 of file seq.h.

◆ CWIST_SEQ_HEADER_SIZE

#define CWIST_SEQ_HEADER_SIZE 8

Size of the sequence chunk header in bytes.

Definition at line 29 of file seq.h.

◆ CWIST_SEQ_MAX_CHUNKS

#define CWIST_SEQ_MAX_CHUNKS 8192

Hard resource ceilings for network-facing reassembly, including callers that use cwist_seq_assembler_create() without an explicit limit.

Definition at line 36 of file seq.h.

◆ CWIST_SEQ_MAX_REASSEMBLED_SIZE

#define CWIST_SEQ_MAX_REASSEMBLED_SIZE (64U * 1024U * 1024U)

Definition at line 37 of file seq.h.

Typedef Documentation

◆ cwist_seq_assembler_t

typedef struct cwist_seq_assembler cwist_seq_assembler_t

Opaque stateful assembler that reorders chunks and detects duplicates.

Definition at line 69 of file seq.h.

◆ cwist_seq_chunk_t

typedef struct cwist_seq_chunk cwist_seq_chunk_t

Parsed view of one sequenced chunk.

The payload pointer borrows the underlying buffer supplied to cwist_seq_chunk_parse().

◆ cwist_seq_message_t

typedef struct cwist_seq_message cwist_seq_message_t

Split a message into sequenced chunks.

Every chunk is an independent byte buffer prefixed with the 8-byte sequence header. The caller must free the returned buffers with cwist_seq_message_free().

Function Documentation

◆ cwist_seq_assembler_create()

cwist_seq_assembler_t * cwist_seq_assembler_create ( void )

Create an empty assembler.

Returns: New assembler, or NULL on allocation failure.

Definition at line 196 of file seq.c.

References cwist_seq_assembler_create_limited().

Referenced by cwist_jwt_join_chunks(), and cwist_websocket_receive_sequenced().

◆ cwist_seq_assembler_create_limited()

cwist_seq_assembler_t * cwist_seq_assembler_create_limited ( size_t max_data_len )

Create an assembler with a maximum possible reassembled size.

A non-zero limit rejects a sequence layout whose full chunks would exceed it before allocating its reassembly buffer. Use this for network-facing parsers. A zero limit has the same behaviour as cwist_seq_assembler_create.

Create an assembler with a maximum possible reassembled size.

Allocates an empty assembler state; buffers are allocated lazily on the first cwist_seq_assembler_feed() call. Destroy with cwist_seq_assembler_destroy().

Parameters

max_data_len Maximum accepted reassembled size in bytes, or 0 to use the CWIST_SEQ_MAX_REASSEMBLED_SIZE default.

Returns: New assembler, or NULL on allocation failure.

Definition at line 211 of file seq.c.

References cap, and cwist_alloc().

Referenced by cwist_http2_serve_connection_ex(), and cwist_seq_assembler_create().

◆ cwist_seq_assembler_destroy()

void cwist_seq_assembler_destroy ( cwist_seq_assembler_t * a )

Destroy an assembler and its internal buffer.

Parameters

a	Assembler to destroy; may be NULL.

Definition at line 223 of file seq.c.

References cap, and cwist_free().

Referenced by cwist_jwt_join_chunks(), and cwist_websocket_receive_sequenced().

◆ cwist_seq_assembler_feed()

bool cwist_seq_assembler_feed	(	cwist_seq_assembler_t *	a,
		const cwist_seq_chunk_t *	chunk
	)

Feed one parsed chunk into the assembler.

Duplicate chunks are silently ignored. Chunks with missing or invalid sequence pairs are rejected.

Parameters

a	Assembler state.
chunk	Parsed chunk.

Returns: true when the chunk was accepted (or was a duplicate).

Feed one parsed chunk into the assembler.

The first valid chunk establishes the message's total and chunk_size; subsequent chunks must match them or are rejected. Identical duplicates are accepted idempotently; a conflicting duplicate is flagged as contamination (retaining the original bytes) and never overwrites good data. The total message length is determined only when the final chunk (seq == total) arrives, so reordered delivery is tolerated. On allocation failure all state is cleared and false is returned.

Parameters

a	Assembler to feed.
chunk	Parsed chunk to accept; payload bytes are copied into the reassembly buffer.

Return values

true	The chunk was accepted (new data or an identical duplicate).
false	Invalid or inconsistent chunk, conflicting duplicate (contamination), size-limit exceeded, or allocation failure.

Definition at line 268 of file seq.c.

References cap, cwist_alloc(), cwist_alloc_array(), cwist_free(), CWIST_SEQ_MAX_CHUNKS, and CWIST_SEQ_MAX_REASSEMBLED_SIZE.

Referenced by cwist_http2_serve_connection_ex(), cwist_jwt_join_chunks(), and cwist_websocket_receive_sequenced().

◆ cwist_seq_assembler_get_data()

bool cwist_seq_assembler_get_data	(	cwist_seq_assembler_t *	a,
		const uint8_t **	out_data,
		size_t *	out_len
	)

Borrow the assembled message when complete.

The returned pointer is valid until the assembler is destroyed or reset.

Parameters

a	Assembler state.
out_data	Receives pointer to assembled bytes.
out_len	Receives assembled length.

Returns: true when the message is complete and outputs were written.

Borrow the assembled message when complete.

Succeeds only when cwist_seq_assembler_is_complete() is true. The returned pointer refers to the assembler's internal buffer, which remains valid until the assembler is reset, destroyed, or fed another chunk; ownership stays with the assembler.

Parameters

a	Assembler to query.
out_data	Receives a pointer to the reassembled bytes.
out_len	Receives the reassembled length in bytes.

Return values

true	The message is complete; outputs are populated.
false	The message is incomplete or an output pointer is NULL.

Definition at line 390 of file seq.c.

References cap, and cwist_seq_assembler_is_complete().

Referenced by cwist_http2_serve_connection_ex(), cwist_jwt_join_chunks(), and cwist_websocket_receive_sequenced().

◆ cwist_seq_assembler_is_complete()

bool cwist_seq_assembler_is_complete ( const cwist_seq_assembler_t * a )

Return true when every expected chunk has been received.

Completion requires every chunk to be present, no conflicting duplicates (contamination), and the final chunk to have arrived so the total length is known.

Parameters

a	Assembler to query; may be NULL.

Return values

true	The message is fully reassembled and clean.
false	Not complete, or `a` is NULL.

Definition at line 343 of file seq.c.

References cap.

Referenced by cwist_seq_assembler_get_data(), cwist_seq_assembler_recovery_targets(), and cwist_websocket_receive_sequenced().

◆ cwist_seq_assembler_recovery_targets()

size_t cwist_seq_assembler_recovery_targets	(	const cwist_seq_assembler_t *	a,
		uint16_t *	out,
		size_t	out_cap
	)

Return the sequence numbers still required to complete a message.

This is the ARQ recovery side of the sequenced protocol: callers can use the returned 1-based values as retry targets. The return value is the total number of missing chunks, even when out is NULL or too small. The result is zero for a complete assembler or one that has not yet seen a valid chunk.

Parameters

a	Assembler state.
out	Optional output array for missing sequence numbers.
out_cap	Number of entries available in `out`.

Returns: Number of missing chunks.

Return the sequence numbers still required to complete a message.

Returns the count of missing chunks and, when out has capacity, writes their 1-based sequence numbers in ascending order. Returns 0 if the assembler has no state or the message is already complete; in those cases nothing is written to out.

Parameters

a	Assembler to query; may be NULL.
out	Optional array to receive missing sequence numbers.
out_cap	Number of elements `out` can hold; ignored when `out` is NULL.

Returns: Total number of missing chunks (may exceed out_cap).

Definition at line 362 of file seq.c.

References cap, and cwist_seq_assembler_is_complete().

◆ cwist_seq_assembler_reset()

void cwist_seq_assembler_reset ( cwist_seq_assembler_t * a )

Reset an assembler so it can receive a new message.

Frees the reassembly buffers but retains the max_data_len configured at creation so the assembler can be reused for a new message. Does nothing if a is NULL.

Parameters

a	Assembler to reset; may be NULL.

Definition at line 240 of file seq.c.

References cap, and cwist_free().

◆ cwist_seq_chunk_build_header()

void cwist_seq_chunk_build_header	(	uint8_t	out[CWIST_SEQ_HEADER_SIZE],
		uint16_t	seq,
		uint16_t	total,
		uint16_t	payload_len,
		uint16_t	chunk_size
	)

Write an 8-byte sequence header.

Parameters

out	Output buffer of at least CWIST_SEQ_HEADER_SIZE bytes.
seq	Sequence number.
total	Total chunks.
payload_len	Payload length in this chunk.
chunk_size	Full chunk payload size.

Write an 8-byte sequence header.

Encodes seq, total, payload_len, and chunk_size as big-endian 16-bit fields. Performs no validation; callers must supply a consistent sequence pair (see cwist_seq_chunk_parse()).

Parameters

out	Buffer of CWIST_SEQ_HEADER_SIZE bytes to write.
seq	Chunk sequence number (1-based).
total	Total number of chunks in the message.
payload_len	Payload bytes in this chunk.
chunk_size	Full payload size of every non-final chunk.

Definition at line 97 of file seq.c.

Referenced by cwist_seq_split().

◆ cwist_seq_chunk_parse()

bool cwist_seq_chunk_parse	(	const uint8_t *	data,
		size_t	len,
		cwist_seq_chunk_t *	out
	)

Parse a sequence chunk from raw bytes.

Parameters

data	Raw bytes.
len	Length of `data`.
out	Receives parsed chunk fields.

Returns: true when data contains a valid chunk header and payload.

Parse a sequence chunk from raw bytes.

Reads the fixed-size chunk header from data and fills out. The payload pointer in out references memory inside data and is not copied. The chunk is rejected if the sequence pair (seq/total) is missing, out of range, or inconsistent, or if the payload length fields disagree with the buffer length.

Parameters

data	Buffer containing at least CWIST_SEQ_HEADER_SIZE bytes.
len	Length of `data` in bytes.
out	Receives the parsed chunk fields on success.

Return values

true	The chunk is valid and `out` is populated.
false	Invalid arguments or a malformed chunk; `out` is untouched.

Definition at line 63 of file seq.c.

References cap, cwist_seq_chunk::chunk_size, CWIST_SEQ_HEADER_SIZE, CWIST_SEQ_MAX_CHUNKS, cwist_seq_chunk::payload, cwist_seq_chunk::payload_len, cwist_seq_chunk::seq, and cwist_seq_chunk::total.

Referenced by cwist_http2_serve_connection_ex(), cwist_jwt_join_chunks(), cwist_seq_auth_wrap(), and cwist_websocket_receive_sequenced().

◆ cwist_seq_message_free()

void cwist_seq_message_free ( cwist_seq_message_t * msg )

Free all buffers allocated by cwist_seq_split().

Releases each chunk buffer plus the chunk and length arrays, then zeroes the struct so it is safe to reuse. Does nothing if msg is NULL.

Parameters

msg	Message to free; may be NULL.

Definition at line 178 of file seq.c.

References cap, and cwist_free().

Referenced by cwist_jwt_split_chunks(), and cwist_websocket_send_sequenced().

◆ cwist_seq_split()

bool cwist_seq_split	(	const uint8_t *	data,
		size_t	len,
		uint16_t	chunk_payload_size,
		cwist_seq_message_t *	out
	)

Split data into sequenced chunks.

Parameters

data	Message bytes.
len	Message length.
chunk_payload_size	Maximum payload bytes per chunk (must be > 0).
out	Receives the split message. Caller must free with cwist_seq_message_free().

Returns: true on success, false on bad arguments or allocation failure.

Split data into sequenced chunks.

Allocates each chunk with cwist_alloc() and writes it into out; the result is released with cwist_seq_message_free(). Every chunk except the last carries exactly chunk_payload_size payload bytes. out is zeroed before use and again on failure.

Parameters

data	Message bytes to split.
len	Length of `data` in bytes.
chunk_payload_size	Payload bytes per chunk; must be non-zero.
out	Receives the chunk array on success.

Return values

true	`out` holds `out->count` chunks.
false	Invalid arguments, or the message would exceed the chunk or reassembled-size limits, or allocation failed; `out` is zeroed.

Definition at line 125 of file seq.c.

References cap, cwist_seq_message::chunk_lens, cwist_seq_message::chunks, cwist_seq_message::count, cwist_alloc(), cwist_alloc_array(), cwist_free(), cwist_seq_chunk_build_header(), CWIST_SEQ_HEADER_SIZE, CWIST_SEQ_MAX_CHUNKS, and CWIST_SEQ_MAX_REASSEMBLED_SIZE.

Referenced by cwist_jwt_split_chunks(), and cwist_websocket_send_sequenced().

Classes

Macros

Typedefs

Functions

Detailed Description

Macro Definition Documentation

◆ CWIST_SEQ_DEFAULT_CHUNK_PAYLOAD

◆ CWIST_SEQ_HEADER_SIZE

◆ CWIST_SEQ_MAX_CHUNKS

◆ CWIST_SEQ_MAX_REASSEMBLED_SIZE

Typedef Documentation

◆ cwist_seq_assembler_t

◆ cwist_seq_chunk_t

◆ cwist_seq_message_t

Function Documentation

◆ cwist_seq_assembler_create()

◆ cwist_seq_assembler_create_limited()

◆ cwist_seq_assembler_destroy()

◆ cwist_seq_assembler_feed()

◆ cwist_seq_assembler_get_data()

◆ cwist_seq_assembler_is_complete()

◆ cwist_seq_assembler_recovery_targets()

◆ cwist_seq_assembler_reset()

◆ cwist_seq_chunk_build_header()

◆ cwist_seq_chunk_parse()

◆ cwist_seq_message_free()

◆ cwist_seq_split()
