gRPC over HTTP/2 helpers for CWIST. More...

#include <cwist/net/http/http.h>
#include <cwist/net/http/http2.h>
#include <cwist/net/grpc/protobuf.h>
#include <stddef.h>
#include <stdint.h>

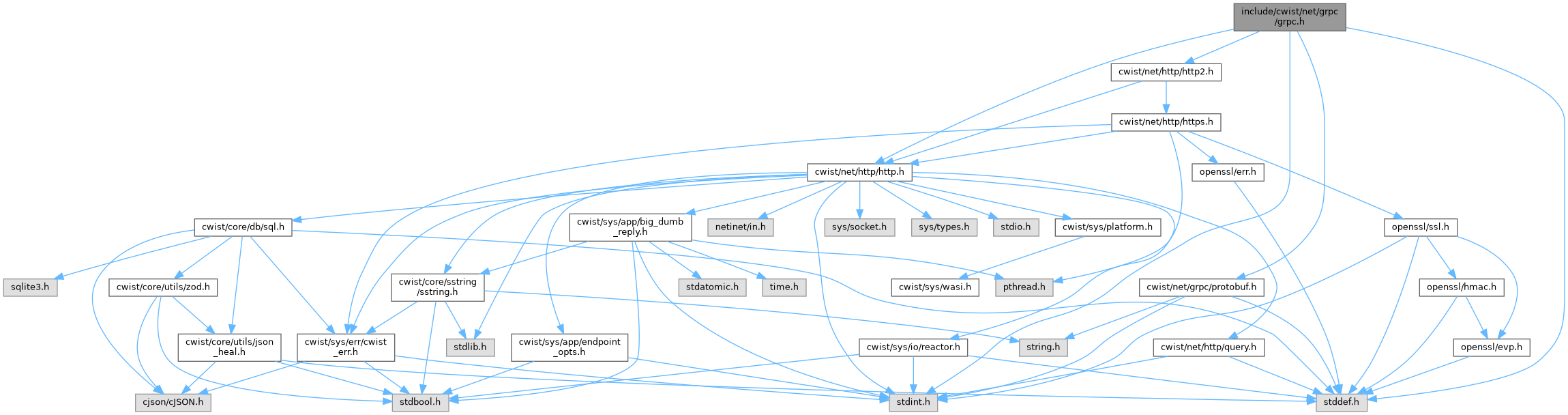

Include dependency graph for grpc.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	cwist_grpc_message

struct	cwist_grpc_stream

struct	cwist_grpc_decoder

Typedefs
typedef enum cwist_grpc_status	cwist_grpc_status_t

typedef struct cwist_grpc_message	cwist_grpc_message

typedef struct cwist_grpc_stream	cwist_grpc_stream

typedef struct cwist_grpc_decoder	cwist_grpc_decoder

typedef int(*	cwist_grpc_message_callback) (void ctx, const cwist_grpc_message message)

typedef void(*	cwist_grpc_unary_handler_func) (cwist_http_request req, cwist_http_response res, const cwist_grpc_message message, void user_ctx)

typedef void(*	cwist_grpc_stream_handler_func) (cwist_grpc_stream stream, void user_ctx)

Enumerations
enum	cwist_grpc_status { CWIST_GRPC_OK = 0 , CWIST_GRPC_CANCELLED = 1 , CWIST_GRPC_UNKNOWN = 2 , CWIST_GRPC_INVALID_ARGUMENT = 3 , CWIST_GRPC_DEADLINE_EXCEEDED = 4 , CWIST_GRPC_NOT_FOUND = 5 , CWIST_GRPC_ALREADY_EXISTS = 6 , CWIST_GRPC_PERMISSION_DENIED = 7 , CWIST_GRPC_RESOURCE_EXHAUSTED = 8 , CWIST_GRPC_FAILED_PRECONDITION = 9 , CWIST_GRPC_ABORTED = 10 , CWIST_GRPC_OUT_OF_RANGE = 11 , CWIST_GRPC_UNIMPLEMENTED = 12 , CWIST_GRPC_INTERNAL = 13 , CWIST_GRPC_UNAVAILABLE = 14 , CWIST_GRPC_DATA_LOSS = 15 , CWIST_GRPC_UNAUTHENTICATED = 16 }

Functions
int	cwist_grpc_decode_message (const void frame, size_t frame_len, cwist_grpc_message out)
	Decode a single gRPC length-prefixed message frame.

int	cwist_grpc_decode_next_message (const void frames, size_t frames_len, size_t offset, cwist_grpc_message *out)
	Decode the next message in a concatenated gRPC frame buffer.

int	cwist_grpc_encode_message (const void payload, size_t payload_len, uint8_t compressed, uint8_t out, size_t out_len)
	Wrap a payload in a gRPC length-prefixed message frame.

void	cwist_grpc_set_response (cwist_http_response res, cwist_grpc_status_t status, const char message, const void *payload, size_t payload_len)
	Build a complete buffered unary gRPC response.

void	cwist_grpc_set_error (cwist_http_response res, cwist_grpc_status_t status, const char message)
	Build a buffered gRPC error response with an empty message.

int	cwist_grpc_stream_send (cwist_grpc_stream stream, const void payload, size_t payload_len)
	Send one message on an open gRPC stream.

void	cwist_grpc_stream_close (cwist_grpc_stream stream, cwist_grpc_status_t status, const char message)
	Close a gRPC stream with a final status.

void	cwist_grpc_stream_set_retry_pushback (cwist_grpc_stream *stream, int32_t ms)
	Advertise a server-side retry pushback hint to the client.

void	cwist_grpc_stream_set_writer (cwist_grpc_stream stream, int(write_frame)(void , const uint8_t , size_t, int), void *ctx)
	Install a custom frame writer on a stream.

int	cwist_grpc_stream_recv (cwist_grpc_stream stream, cwist_grpc_message out)
	Receive the next inbound message on a stream.

int	cwist_grpc_stream_cancelled (cwist_grpc_stream *stream)
	Check whether a stream has been cancelled.

uint64_t	cwist_grpc_stream_deadline_remaining_ms (cwist_grpc_stream *stream)
	Milliseconds remaining until the stream deadline.

const char *	cwist_grpc_metadata_get (cwist_http_request req, const char key)
	Fetch a metadata header value from a gRPC request.

int	cwist_grpc_metadata_get_binary (cwist_http_request req, const char key, uint8_t out, size_t out_cap, size_t out_len)
	Decode a binary ("-bin" suffixed) metadata header from base64.

int	cwist_grpc_parse_timeout (const char value, uint64_t out_ms)
	Parse a gRPC timeout value into milliseconds.

void	cwist_grpc_decoder_init (cwist_grpc_decoder *decoder, size_t max_message_size)
	Initialize an incremental gRPC message decoder.

void	cwist_grpc_decoder_destroy (cwist_grpc_decoder *decoder)
	Release all resources held by a decoder and reset it to zero.

int	cwist_grpc_decoder_feed (cwist_grpc_decoder decoder, const void data, size_t len, cwist_grpc_message_callback callback, void *ctx)
	Feed bytes into an incremental gRPC message decoder.

int	cwist_app_grpc_health (struct cwist_app *app)
	Register the built-in grpc.health.v1.Health service on an app.

int	cwist_app_grpc_health_set_status (struct cwist_app app, const char service, int serving)
	Set or update the serving status of a named service.

int	cwist_app_grpc_health_watchers (struct cwist_app *app)
	Count currently active Health/Watch streams.

int	cwist_app_grpc_reflection (struct cwist_app *app)
	Register the built-in gRPC server reflection service on an app.

int	cwist_app_grpc_unary (struct cwist_app app, const char service, const char method, cwist_grpc_unary_handler_func handler, void user_ctx)
	Register a unary gRPC method on an app.

int	cwist_app_grpc_stream (struct cwist_app app, const char service, const char method, cwist_grpc_stream_handler_func handler, void user_ctx)
	Register a client-streaming gRPC method on an app.

const cwist_http2_stream_hooks *	cwist_grpc_http2_hooks (void)
	Access the gRPC HTTP/2 stream hooks table.

void	cwist_grpc_routes_destroy (struct cwist_app *app)
	Free all gRPC routes and per-route resources on an app.

int	cwist_grpc_routes_clone (struct cwist_app dst, const struct cwist_app src)

Detailed Description

gRPC over HTTP/2 helpers for CWIST.

Definition in file grpc.h.

Typedef Documentation

◆ cwist_grpc_decoder

typedef struct cwist_grpc_decoder cwist_grpc_decoder

Incremental gRPC frame decoder for arbitrarily split HTTP/2 DATA payloads.

◆ cwist_grpc_message

typedef struct cwist_grpc_message cwist_grpc_message

◆ cwist_grpc_message_callback

typedef int(* cwist_grpc_message_callback) (void *ctx, const cwist_grpc_message *message)

Definition at line 80 of file grpc.h.

◆ cwist_grpc_status_t

typedef enum cwist_grpc_status cwist_grpc_status_t

◆ cwist_grpc_stream

typedef struct cwist_grpc_stream cwist_grpc_stream

◆ cwist_grpc_stream_handler_func

typedef void(* cwist_grpc_stream_handler_func) (cwist_grpc_stream *stream, void *user_ctx)

Definition at line 85 of file grpc.h.

◆ cwist_grpc_unary_handler_func

typedef void(* cwist_grpc_unary_handler_func) (cwist_http_request *req, cwist_http_response *res, const cwist_grpc_message *message, void *user_ctx)

Definition at line 82 of file grpc.h.

Enumeration Type Documentation

◆ cwist_grpc_status

enum cwist_grpc_status

Enumerator
CWIST_GRPC_OK
CWIST_GRPC_CANCELLED
CWIST_GRPC_UNKNOWN
CWIST_GRPC_INVALID_ARGUMENT
CWIST_GRPC_DEADLINE_EXCEEDED
CWIST_GRPC_NOT_FOUND
CWIST_GRPC_ALREADY_EXISTS
CWIST_GRPC_PERMISSION_DENIED
CWIST_GRPC_RESOURCE_EXHAUSTED
CWIST_GRPC_FAILED_PRECONDITION
CWIST_GRPC_ABORTED
CWIST_GRPC_OUT_OF_RANGE
CWIST_GRPC_UNIMPLEMENTED
CWIST_GRPC_INTERNAL
CWIST_GRPC_UNAVAILABLE
CWIST_GRPC_DATA_LOSS
CWIST_GRPC_UNAUTHENTICATED

Definition at line 21 of file grpc.h.

Function Documentation

◆ cwist_app_grpc_health()

int cwist_app_grpc_health ( cwist_app * app )

Register the built-in grpc.health.v1.Health service on an app.

Register the standard grpc.health.v1.Health Check and Watch methods.

Installs the Check (unary) and Watch (streaming) routes backed by a single newly allocated health registry. On failure the registry is freed and no routes remain half-installed.

Parameters

app	Application to register on; may be NULL.

Return values

0	Both routes registered.
-1	NULL app, allocation failure, or route registration failure.

Definition at line 1137 of file grpc.c.

References cap, cwist_alloc(), and cwist_free().

Referenced by cwist_grpc_routes_clone().

◆ cwist_app_grpc_health_set_status()

int cwist_app_grpc_health_set_status	(	cwist_app *	app,
		const char *	service,
		int	serving
	)

Set or update the serving status of a named service.

Records the status in the health registry and wakes all active Watch streams. Thread-safe; takes the registry lock internally.

Parameters

app	App whose health service was registered with cwist_app_grpc_health().
service	Service name to update.
serving	Non-zero for SERVING, zero for NOT_SERVING.

Return values

0	Status recorded.
-1	No health service registered, NULL arguments, or allocation failure.

Definition at line 1173 of file grpc.c.

References cap, cwist_alloc(), and cwist_free().

Referenced by cwist_grpc_routes_clone().

◆ cwist_app_grpc_health_watchers()

int cwist_app_grpc_health_watchers ( cwist_app * app )

Count currently active Health/Watch streams.

Number of active streaming Watch calls; -1 when health is not registered.

Parameters

app	App whose health service was registered.

Returns: Number of active watchers (atomic snapshot).

Return values

-1	No health Watch route registered on `app`.

Definition at line 1212 of file grpc.c.

References cap.

◆ cwist_app_grpc_reflection()

int cwist_app_grpc_reflection ( cwist_app * app )

Register the built-in gRPC server reflection service on an app.

Register the grpc.reflection.v1alpha.ServerReflection service.

Installs the streaming ServerReflectionInfo route.

Parameters

app	Application to register on.

Return values

0	Route registered.
-1	Route registration failed.

Definition at line 1281 of file grpc.c.

References cap.

Referenced by cwist_grpc_routes_clone().

◆ cwist_app_grpc_stream()

int cwist_app_grpc_stream	(	cwist_app *	app,
		const char *	service,
		const char *	method,
		cwist_grpc_stream_handler_func	handler,
		void *	user_ctx
	)

Register a client-streaming gRPC method on an app.

Parameters

app	Application to register on.
service	gRPC service name.
method	Method name.
handler	Streaming handler invoked once per call with the stream.
user_ctx	Opaque pointer passed to `handler`.

Return values

0	Registered.
-1	See grpc_register_route().

Definition at line 1371 of file grpc.c.

References cap.

Referenced by cwist_grpc_routes_clone().

◆ cwist_app_grpc_unary()

int cwist_app_grpc_unary	(	cwist_app *	app,
		const char *	service,
		const char *	method,
		cwist_grpc_unary_handler_func	handler,
		void *	user_ctx
	)

Register a unary gRPC method on an app.

Parameters

app	Application to register on.
service	gRPC service name.
method	Method name.
handler	Unary handler invoked per request.
user_ctx	Opaque pointer passed to `handler`.

Return values

0	Registered.
-1	See grpc_register_route().

Definition at line 1357 of file grpc.c.

References cap.

Referenced by cwist_grpc_routes_clone().

◆ cwist_grpc_decode_message()

int cwist_grpc_decode_message	(	const void *	frame,
		size_t	frame_len,
		cwist_grpc_message *	out
	)

Decode a single gRPC length-prefixed message frame.

Parameters

frame	Frame bytes: 1-byte compression flag + 4-byte big-endian length + payload.
frame_len	Total frame length; must be exactly 5 + payload length.
out	Receives compression flag and a pointer/length into `frame` (borrowed; not copied).

Return values

0	Success.
-1	NULL input, frame shorter than 5 bytes, or length mismatch.

Definition at line 622 of file grpc.c.

References cap, cwist_grpc_message::compressed, cwist_grpc_message::data, and cwist_grpc_message::len.

◆ cwist_grpc_decode_next_message()

int cwist_grpc_decode_next_message	(	const void *	frames,
		size_t	frames_len,
		size_t *	offset,
		cwist_grpc_message *	out
	)

Decode the next message in a concatenated gRPC frame buffer.

Advances *offset past the decoded message so it can be called again to iterate.

Parameters

frames	Buffer holding concatenated length-prefixed messages.
frames_len	Total buffer length.
offset	In/out cursor into `frames`; on entry the message start, on exit one past the decoded message.
out	Receives the compression flag and a borrowed pointer/length into `frames`.

Return values

0	Success.
-1	NULL input, offset out of range, or truncated frame.

Definition at line 649 of file grpc.c.

References cap, cwist_grpc_message::compressed, cwist_grpc_message::data, and cwist_grpc_message::len.

◆ cwist_grpc_decoder_destroy()

void cwist_grpc_decoder_destroy ( cwist_grpc_decoder * decoder )

Release all resources held by a decoder and reset it to zero.

Safe to call on a decoder that was only ever initialized or already destroyed. Afterwards the decoder must not be used without re-init.

Parameters

decoder Decoder to destroy; may be NULL.

Definition at line 713 of file grpc.c.

References cap, cwist_free(), and cwist_grpc_decoder::payload.

Referenced by cwist_grpc_call_destroy(), and cwist_grpc_call_start_ex().

◆ cwist_grpc_decoder_feed()

int cwist_grpc_decoder_feed	(	cwist_grpc_decoder *	decoder,
		const void *	data,
		size_t	len,
		cwist_grpc_message_callback	callback,
		void *	ctx
	)

Feed bytes into an incremental gRPC message decoder.

Feed a partial HTTP/2 DATA payload. Calls callback for every complete frame.

Buffers partial frames internally and invokes callback with each fully decoded message. The message payload pointer passed to the callback is owned by the decoder and is only valid for the duration of the call.

Parameters

decoder	Decoder state.
data	Incoming bytes; may be NULL only when `len` is 0.
len	Number of incoming bytes.
callback	Invoked per completed message; a nonzero return aborts.
ctx	Opaque pointer passed through to `callback`.

Return values

0	All input consumed.
-1	Invalid argument, frame too large or malformed, allocation failure, or the callback returned nonzero (decoder state is then unusable).

Definition at line 734 of file grpc.c.

References cap, cwist_grpc_decoder::compressed, cwist_alloc(), cwist_free(), cwist_grpc_decoder::header, cwist_grpc_decoder::header_len, cwist_grpc_decoder::max_message_size, cwist_grpc_decoder::payload, cwist_grpc_decoder::payload_len, and cwist_grpc_decoder::payload_used.

◆ cwist_grpc_decoder_init()

void cwist_grpc_decoder_init	(	cwist_grpc_decoder *	decoder,
		size_t	max_message_size
	)

Initialize an incremental gRPC message decoder.

Parameters

decoder	Decoder state to zero and configure.
max_message_size	Maximum accepted payload in bytes; 0 selects the default of 16 MiB.

Definition at line 701 of file grpc.c.

References cap, and cwist_grpc_decoder::max_message_size.

Referenced by cwist_grpc_call_start_ex().

◆ cwist_grpc_encode_message()

int cwist_grpc_encode_message	(	const void *	payload,
		size_t	payload_len,
		uint8_t	compressed,
		uint8_t **	out,
		size_t *	out_len
	)

Wrap a payload in a gRPC length-prefixed message frame.

Parameters

payload	Message bytes; may be NULL when `payload_len` is 0.
payload_len	Payload length; must fit in a 32-bit field.
compressed	Non-zero to set the compression flag in the frame header.
out	Receives a newly allocated frame.
out_len	Receives the frame length (5 + payload length).

Return values

0	Success; caller owns *`out` and must free it with cwist_free().
-1	NULL output pointers, NULL payload with nonzero length, payload too large, or allocation failure.

Definition at line 677 of file grpc.c.

References cap, and cwist_alloc().

Referenced by cwist_grpc_call_start_ex(), cwist_grpc_set_response(), and cwist_grpc_stream_send().

◆ cwist_grpc_http2_hooks()

const cwist_http2_stream_hooks * cwist_grpc_http2_hooks ( void )

Access the gRPC HTTP/2 stream hooks table.

HTTP/2 stream hooks that route gRPC streaming calls through the incremental transport path. The hook context is the cwist_app pointer already passed as user_ctx to cwist_http2_serve_connection_ex().

Returns: Static hooks structure wiring the incremental gRPC streaming engine into the HTTP/2 transport.

Definition at line 2109 of file grpc.c.

Referenced by cwist_app_http_handler(), and cwist_app_http_handler_async().

◆ cwist_grpc_metadata_get()

const char * cwist_grpc_metadata_get	(	cwist_http_request *	req,
		const char *	key
	)

Fetch a metadata header value from a gRPC request.

Normalized request metadata lookup. Header names are matched case-insensitively (HTTP/2 mandates lowercase); textual values are returned as-is. Returns NULL when the key is absent.

Parameters

req	Request to search; may be NULL.
key	Header name to match; may be NULL.

Returns: Header value, or NULL when absent or on NULL input.

Definition at line 371 of file grpc.c.

◆ cwist_grpc_metadata_get_binary()

int cwist_grpc_metadata_get_binary	(	cwist_http_request *	req,
		const char *	key,
		uint8_t *	out,
		size_t	out_cap,
		size_t *	out_len
	)

Decode a binary ("-bin" suffixed) metadata header from base64.

Binary metadata ("*-bin" keys): base64-decodes the value into out. Returns 0 on success, -1 when absent/undecodable, -2 when out_cap is too small (required size reported in out_len).

Parameters

req	Request to search; may be NULL.
key	Metadata key; must end in "-bin".
out	Output buffer for the decoded bytes.
out_cap	Capacity of `out` in bytes.
out_len	Receives the decoded length in bytes.

Return values

0	Decoding succeeded.
-1	NULL input, key without "-bin" suffix, missing header, or decode failure (see grpc_base64_decode for -2 overflow).

Definition at line 385 of file grpc.c.

References cap.

◆ cwist_grpc_parse_timeout()

int cwist_grpc_parse_timeout	(	const char *	value,
		uint64_t *	out_ms
	)

Parse a gRPC timeout value into milliseconds.

Parse a grpc-timeout header value ("100m", "2S", ...) into milliseconds. Returns 0 on success, -1 on malformed input.

Accepts the gRPC "TimeoutValue Unit" form with units H, M, S, m, u, n (hours down to nanoseconds); sub-millisecond values round up so a positive timeout never becomes zero.

Parameters

value	Timeout string, e.g. "10S" or "500m"; may be NULL.
out_ms	Receives the timeout in milliseconds.

Return values

0	Parsed successfully.
-1	NULL input, malformed value, or unsupported unit.

Definition at line 146 of file grpc.c.

References cap.

◆ cwist_grpc_routes_clone()

int cwist_grpc_routes_clone	(	struct cwist_app *	dst,
		const struct cwist_app *	src
	)

◆ cwist_grpc_routes_destroy()

void cwist_grpc_routes_destroy ( cwist_app * app )

Free all gRPC routes and per-route resources on an app.

Also tears down the health registry owned by the built-in health Check route (states, mutex, condvar). Leaves app->grpc_routes NULL.

Parameters

app	App to clean up; may be NULL (no-op).

Definition at line 1382 of file grpc.c.

References cap, cwist_free(), and cwist_app::grpc_routes.

Referenced by cwist_app_destroy().

◆ cwist_grpc_set_error()

void cwist_grpc_set_error	(	cwist_http_response *	res,
		cwist_grpc_status_t	status,
		const char *	message
	)

Build a buffered gRPC error response with an empty message.

Convenience wrapper over cwist_grpc_set_response() with no payload.

Parameters

res	Response object to fill.
status	gRPC status code.
message	Status message for the grpc-message header; may be NULL.

Definition at line 819 of file grpc.c.

References cap, and cwist_grpc_set_response().

◆ cwist_grpc_set_response()

void cwist_grpc_set_response	(	cwist_http_response *	res,
		cwist_grpc_status_t	status,
		const char *	message,
		const void *	payload,
		size_t	payload_len
	)

Build a complete buffered unary gRPC response.

Sets the HTTP 200 status, gRPC content-type headers, grpc-status/grpc-message headers, and a single length-prefixed message frame from payload.

Parameters

res	Response object to fill; may be NULL (no-op).
status	gRPC status code for the grpc-status header.
message	Optional status message for the grpc-message header.
payload	Message payload bytes; may be NULL for an empty message.
payload_len	Payload length in bytes.

Definition at line 784 of file grpc.c.

References cwist_http_response::body, cap, cwist_free(), cwist_grpc_encode_message(), cwist_http_header_add(), CWIST_HTTP_INTERNAL_ERROR, CWIST_HTTP_OK, cwist_sstring_assign(), cwist_sstring_assign_len(), cwist_http_response::headers, and cwist_http_response::status_code.

Referenced by cwist_grpc_set_error().

◆ cwist_grpc_stream_cancelled()

int cwist_grpc_stream_cancelled ( cwist_grpc_stream * stream )

Check whether a stream has been cancelled.

Non-zero when the call was cancelled or the deadline expired.

Reads the session state under the session lock when backed by a transport.

Parameters

stream Stream to check; may be NULL (treated as not cancelled).

Return values

1	Cancelled.
0	Still active.

Definition at line 1814 of file grpc.c.

References cwist_grpc_stream::cancelled, cap, and cwist_grpc_stream::session.

◆ cwist_grpc_stream_close()

void cwist_grpc_stream_close	(	cwist_grpc_stream *	stream,
		cwist_grpc_status_t	status,
		const char *	message
	)

Close a gRPC stream with a final status.

Idempotent: a second call is a no-op. Emits grpc-status/grpc-message trailers through the transport session when present, otherwise adds them as response headers on the buffered path.

Parameters

stream	Stream to close; may be NULL (no-op).
status	Final gRPC status.
message	Final status message; may be NULL.

Definition at line 933 of file grpc.c.

References cap, cwist_grpc_stream::closed, cwist_http_header_add(), cwist_http_response::headers, cwist_grpc_stream::res, cwist_grpc_stream::session, cwist_grpc_stream::status, and cwist_grpc_stream::status_message.

◆ cwist_grpc_stream_deadline_remaining_ms()

uint64_t cwist_grpc_stream_deadline_remaining_ms ( cwist_grpc_stream * stream )

Milliseconds remaining until the stream deadline.

Remaining deadline in milliseconds; UINT64_MAX when no grpc-timeout was set.

Parameters

stream Stream to inspect; may be NULL (treated as no deadline).

Returns: Milliseconds left, 0 when the deadline has passed, or UINT64_MAX when no deadline was set.

Definition at line 1834 of file grpc.c.

References cap, and cwist_grpc_stream::deadline_ms.

◆ cwist_grpc_stream_recv()

int cwist_grpc_stream_recv	(	cwist_grpc_stream *	stream,
		cwist_grpc_message *	out
	)

Receive the next inbound message on a stream.

Blocking receive for streaming handlers on the HTTP/2 transport path. Returns 1 and fills out when a message arrived, 0 on client half-close (END_STREAM), and -1 when the call was cancelled (client RST_STREAM, deadline expiry, or transport error). On the buffered (in-process) path this pops from the pre-decoded message array. out->data stays valid until the next recv on the same stream.

Buffered path: pops the next pre-decoded message, enforcing the deadline first. Transport path: blocks on the session queue until a message arrives, the call is cancelled, EOF is reached, or the deadline expires.

Parameters

stream	Stream to read from; may be NULL.
out	Receives the message (borrowed pointer valid until the next recv on this stream).

Return values

1	A message was delivered.
0	End of stream (no more messages).
-1	NULL argument, cancellation, or deadline exceeded (stream status set to DEADLINE_EXCEEDED in the latter case).

Definition at line 1740 of file grpc.c.

References cwist_grpc_stream::cancelled, cap, cwist_grpc_message::compressed, cwist_free(), CWIST_GRPC_DEADLINE_EXCEEDED, cwist_grpc_message::data, cwist_grpc_stream::deadline_ms, cwist_grpc_message::len, cwist_grpc_stream::message_count, cwist_grpc_stream::messages, cwist_grpc_stream::recv_pos, cwist_grpc_stream::session, cwist_grpc_stream::status, and cwist_grpc_stream::status_message.

◆ cwist_grpc_stream_send()

int cwist_grpc_stream_send	(	cwist_grpc_stream *	stream,
		const void *	payload,
		size_t	payload_len
	)

Send one message on an open gRPC stream.

Frames the payload (gzip-compressing it when the peer negotiated gzip and deflation succeeds) and delivers it either to the transport-backed write_frame hook or by appending to the buffered response body. On any failure the stream status and status message are set to describe the error.

Parameters

stream	Open stream to send on; may be NULL.
payload	Message bytes; may be NULL when `payload_len` is 0.
payload_len	Message length in bytes.

Return values

0	Message accepted by the transport/buffer.
-1	Encoding or write failure; stream->status is updated.

Definition at line 836 of file grpc.c.

References cwist_http_response::body, cap, cwist_error_dispose(), cwist_free(), cwist_grpc_encode_message(), CWIST_GRPC_INTERNAL, CWIST_GRPC_UNAVAILABLE, cwist_sstring_append_len(), cwist_grpc_stream::req, cwist_grpc_stream::res, cwist_grpc_stream::session, cwist_grpc_stream::status, cwist_grpc_stream::status_message, cwist_grpc_stream::write_frame, and cwist_grpc_stream::write_frame_ctx.

◆ cwist_grpc_stream_set_retry_pushback()

void cwist_grpc_stream_set_retry_pushback	(	cwist_grpc_stream *	stream,
		int32_t	ms
	)

Advertise a server-side retry pushback hint to the client.

gRFC A6 server pushback: attach "grpc-retry-pushback-ms" to the response trailers. A non-negative ms asks the client to wait that long before retrying; a negative value asks it not to retry at all. For unary handlers the same effect is available by adding a "grpc-retry-pushback-ms" header to the response.

Records the hint on the stream; on the buffered path it is also emitted as the grpc-retry-pushback-ms header for the HTTP/2 layer to move into the trailers.

Parameters

stream	Stream to annotate; may be NULL (no-op).
ms	Retry delay hint in milliseconds.

Definition at line 963 of file grpc.c.

References cap, cwist_http_header_add(), cwist_http_response::headers, cwist_grpc_stream::res, cwist_grpc_stream::retry_pushback_ms, cwist_grpc_stream::retry_pushback_set, and cwist_grpc_stream::session.

◆ cwist_grpc_stream_set_writer()

void cwist_grpc_stream_set_writer	(	cwist_grpc_stream *	stream,
		int()(void , const uint8_t *, size_t, int)	write_frame,
		void *	ctx
	)

Install a custom frame writer on a stream.

Attach a transport writer; subsequent sends are emitted immediately.

Overrides where cwist_grpc_stream_send() delivers frames (and, for the buffered path, cwist_grpc_stream_close() trailers are still used). May be NULL to clear the hook.

Parameters

stream	Stream to configure; may be NULL (no-op).
write_frame	Callback invoked with each framed message; may be NULL.
ctx	Opaque pointer passed as the first callback argument.

Definition at line 916 of file grpc.c.

References cwist_grpc_stream::write_frame, and cwist_grpc_stream::write_frame_ctx.

Classes

Typedefs

Enumerations

Functions

Detailed Description

Typedef Documentation

◆ cwist_grpc_decoder

◆ cwist_grpc_message

◆ cwist_grpc_message_callback

◆ cwist_grpc_status_t

◆ cwist_grpc_stream

◆ cwist_grpc_stream_handler_func

◆ cwist_grpc_unary_handler_func

Enumeration Type Documentation

◆ cwist_grpc_status

Function Documentation

◆ cwist_app_grpc_health()

◆ cwist_app_grpc_health_set_status()

◆ cwist_app_grpc_health_watchers()

◆ cwist_app_grpc_reflection()

◆ cwist_app_grpc_stream()

◆ cwist_app_grpc_unary()

◆ cwist_grpc_decode_message()

◆ cwist_grpc_decode_next_message()

◆ cwist_grpc_decoder_destroy()

◆ cwist_grpc_decoder_feed()

◆ cwist_grpc_decoder_init()

◆ cwist_grpc_encode_message()

◆ cwist_grpc_http2_hooks()

◆ cwist_grpc_metadata_get()

◆ cwist_grpc_metadata_get_binary()

◆ cwist_grpc_parse_timeout()

◆ cwist_grpc_routes_clone()

◆ cwist_grpc_routes_destroy()

◆ cwist_grpc_set_error()

◆ cwist_grpc_set_response()

◆ cwist_grpc_stream_cancelled()

◆ cwist_grpc_stream_close()

◆ cwist_grpc_stream_deadline_remaining_ms()

◆ cwist_grpc_stream_recv()

◆ cwist_grpc_stream_send()

◆ cwist_grpc_stream_set_retry_pushback()

◆ cwist_grpc_stream_set_writer()
