graphql_ws.c File Reference

Experimental GraphQL subscriptions over the graphql-ws WebSocket subprotocol (v3.7 Phase 4). More...

#include <cwist/net/graphql/graphql_ws.h>
#include <cwist/core/mem/alloc.h>
#include <cwist/net/websocket/websocket_async.h>
#include <pthread.h>
#include <stdatomic.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include "../websocket/ws_async_internal.h"

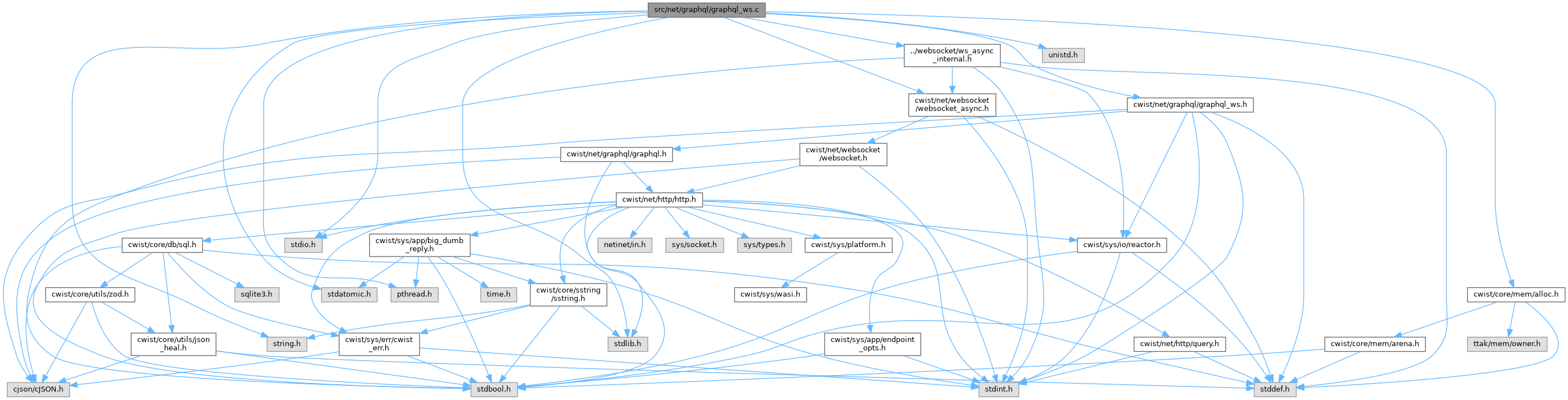

Include dependency graph for graphql_ws.c:

Go to the source code of this file.

Macros
#define	GQL_WS_CLOSE_BAD_REQUEST   4400
#define	GQL_WS_CLOSE_UNAUTHORIZED   4401
#define	GQL_WS_CLOSE_DUPLICATE_ID   4409
#define	GQL_WS_CLOSE_SUBSCRIBE_BEFORE_INIT   4429

Typedefs
typedef struct gql_sub_field	gql_sub_field_t
typedef struct gql_ws_op	gql_ws_op_t
typedef struct gql_ws_conn	gql_ws_conn_t
typedef struct gql_ws_flush	gql_ws_flush_t

Functions
cwist_graphql_event_source_t *	cwist_graphql_event_source_create (void)
	Create an empty event source (topic interest set).
bool	cwist_graphql_event_source_add_topic (cwist_graphql_event_source_t *src, const char *topic)
	Add a topic to an event source.
void	cwist_graphql_event_source_destroy (cwist_graphql_event_source_t *src)
	Destroy an event source, freeing all topic strings and the set.
cwist_graphql_ws_t *	cwist_graphql_ws_create (cwist_graphql_schema_t *schema)
	Create a graphql-ws endpoint holding a subscription field registry.
void	cwist_graphql_ws_destroy (cwist_graphql_ws_t *gws)
	Destroy an endpoint and its subscription field registry.
bool	cwist_graphql_ws_add_subscription (cwist_graphql_ws_t *gws, const char *field, cwist_graphql_subscribe_fn subscribe_fn, void *ctx)
	Register (or replace) the resolver for a subscription root field.
size_t	cwist_graphql_publish (const char *topic, const cJSON *payload)
bool	cwist_graphql_ws_attach (cwist_graphql_ws_t *gws, int fd, cwist_reactor_t *reactor, const uint8_t *initial, size_t initial_len)

Detailed Description

Experimental GraphQL subscriptions over the graphql-ws WebSocket subprotocol (v3.7 Phase 4).

Protocol (Sec-WebSocket-Protocol: graphql-transport-ws): connection_init -> connection_ack subscribe {id, payload:{query,variables,operationName}} -> one next {id, payload:{data:{field: <event>}}} per published event; error {id, payload:[...]} when the operation fails to start; complete {id} when the operation ends (client complete or socket close) ping/pong -> JSON keepalive at any time after init subscribe before connection_init closes the socket with 4429; other protocol violations close with 4400/4401/4409.

Broker model: a subscription resolver returns an event source (a set of topics). cwist_graphql_publish() is the single fan-out entry point and may be called from ANY thread: matched operations queue a serialized next message, and a reactor-posted flush node drains the queue on the owning reactor thread (only the reactor thread may touch the socket). Connection teardown is reported by the WS layer's on_close hook, which unlinks every operation of the connection from the broker and releases the protocol state; refcounting keeps the state alive until in-flight flush nodes have drained.

Definition in file graphql_ws.c.

Macro Definition Documentation

GQL_WS_CLOSE_BAD_REQUEST

#define GQL_WS_CLOSE_BAD_REQUEST   4400

Definition at line 40 of file graphql_ws.c.

GQL_WS_CLOSE_DUPLICATE_ID

#define GQL_WS_CLOSE_DUPLICATE_ID   4409

Definition at line 42 of file graphql_ws.c.

GQL_WS_CLOSE_SUBSCRIBE_BEFORE_INIT

#define GQL_WS_CLOSE_SUBSCRIBE_BEFORE_INIT   4429

Definition at line 43 of file graphql_ws.c.

GQL_WS_CLOSE_UNAUTHORIZED

#define GQL_WS_CLOSE_UNAUTHORIZED   4401

Definition at line 41 of file graphql_ws.c.

Typedef Documentation

gql_sub_field_t

typedef struct gql_sub_field gql_sub_field_t

gql_ws_conn_t

typedef struct gql_ws_conn gql_ws_conn_t

gql_ws_flush_t

typedef struct gql_ws_flush gql_ws_flush_t

gql_ws_op_t

typedef struct gql_ws_op gql_ws_op_t

Function Documentation

cwist_graphql_event_source_add_topic()

bool cwist_graphql_event_source_add_topic	(	cwist_graphql_event_source_t *	src,
		const char *	topic
	)

Add a topic to an event source.

Idempotent: adding a topic that is already present succeeds without duplicating it. The topic string is copied, so the caller keeps ownership of topic.

Parameters

src	Event source to modify; must not be NULL.
topic	Topic name to add; must be a non-empty string.

Returns

true on success (including the already-present case), false on invalid arguments or allocation failure.

Definition at line 76 of file graphql_ws.c.

References cap, cwist_alloc_array(), cwist_free(), and cwist_strdup().

cwist_graphql_event_source_create()

cwist_graphql_event_source_t * cwist_graphql_event_source_create

(

void

)

Create an empty event source (topic interest set).

Returns

New event source, or NULL on allocation failure. Owned by the caller; free with cwist_graphql_event_source_destroy().

Definition at line 60 of file graphql_ws.c.

References cwist_alloc().

cwist_graphql_event_source_destroy()

void cwist_graphql_event_source_destroy

(

cwist_graphql_event_source_t *

src

)

Destroy an event source, freeing all topic strings and the set.

Parameters

src	Event source to free; NULL is a no-op.

Definition at line 101 of file graphql_ws.c.

References cap, and cwist_free().

cwist_graphql_publish()

size_t cwist_graphql_publish	(	const char *	topic,
		const cJSON *	payload
	)

Publish an event to the in-process broker. The payload becomes the field value inside each delivered next message's data (null when payload is NULL). Thread-safe: may be called from any thread; matched subscriptions are queued and delivered on their connection's reactor thread.

Parameters

topic	Broker topic (non-empty string).
payload	Event payload (borrowed) or NULL.

Returns

Number of next messages queued.

Definition at line 468 of file graphql_ws.c.

References cap, cwist_alloc_array(), and cwist_free().

cwist_graphql_ws_add_subscription()

bool cwist_graphql_ws_add_subscription	(	cwist_graphql_ws_t *	gws,
		const char *	field,
		cwist_graphql_subscribe_fn	subscribe_fn,
		void *	ctx
	)

Register (or replace) the resolver for a subscription root field.

If the field is already registered, its resolver and context are replaced in place; otherwise a new entry is prepended to the registry. The field name is copied.

Parameters

gws	Endpoint to register on; must not be NULL.
field	Subscription root field name; must be a non-empty string.
subscribe_fn	Resolver invoked per subscribe for field; must not be NULL. It receives the parsed arguments and variables and returns an event source (owned by the broker) or NULL to reject the operation.
ctx	Opaque pointer passed through to subscribe_fn.

Returns

true on success, false on invalid arguments or allocation failure.

Definition at line 190 of file graphql_ws.c.

References cap, cwist_alloc(), cwist_free(), and cwist_strdup().

cwist_graphql_ws_attach()

bool cwist_graphql_ws_attach	(	cwist_graphql_ws_t *	gws,
		int	fd,
		cwist_reactor_t *	reactor,
		const uint8_t *	initial,
		size_t	initial_len
	)

Attach the graphql-ws protocol handler to a connected, upgraded fd. The fd is driven reactively by reactor (same ownership contract as cwist_websocket_async_attach): the HTTP layer must not touch the fd after a successful call.

Parameters

gws	Endpoint whose schema resolves subscriptions.
fd	Connected client socket (set non-blocking here).
reactor	Reactor that will own the connection.
initial	Bytes already read past the upgrade request (may be NULL).
initial_len	Number of valid bytes at initial.

Returns

true when the fd was handed to the reactor path, false on failure (fd closed).

Definition at line 730 of file graphql_ws.c.

References cap, and cwist_websocket_async_attach_ex().

cwist_graphql_ws_create()

cwist_graphql_ws_t * cwist_graphql_ws_create

(

cwist_graphql_schema_t *

schema

)

Create a graphql-ws endpoint holding a subscription field registry.

Parameters

schema

GraphQL schema the endpoint answers to; not owned, must outlive the endpoint.

Returns

New endpoint, or NULL if schema is NULL or allocation fails. Free with cwist_graphql_ws_destroy().

Definition at line 144 of file graphql_ws.c.

References cap, and cwist_alloc().

cwist_graphql_ws_destroy()

void cwist_graphql_ws_destroy

(

cwist_graphql_ws_t *

gws

)

Destroy an endpoint and its subscription field registry.

Does not touch active connections or broker operations still referencing the endpoint's resolvers.

Parameters

gws	Endpoint to free; NULL is a no-op.

Definition at line 162 of file graphql_ws.c.

References cap, and cwist_free().
