dtls.c File Reference

DTLS helpers: ephemeral certificate generation, fingerprint, SSL_CTX. More...

#include "webrtc_internal.h"
#include <openssl/ec.h>
#include <openssl/evp.h>
#include <openssl/x509.h>
#include <pthread.h>
#include <stdio.h>
#include <string.h>

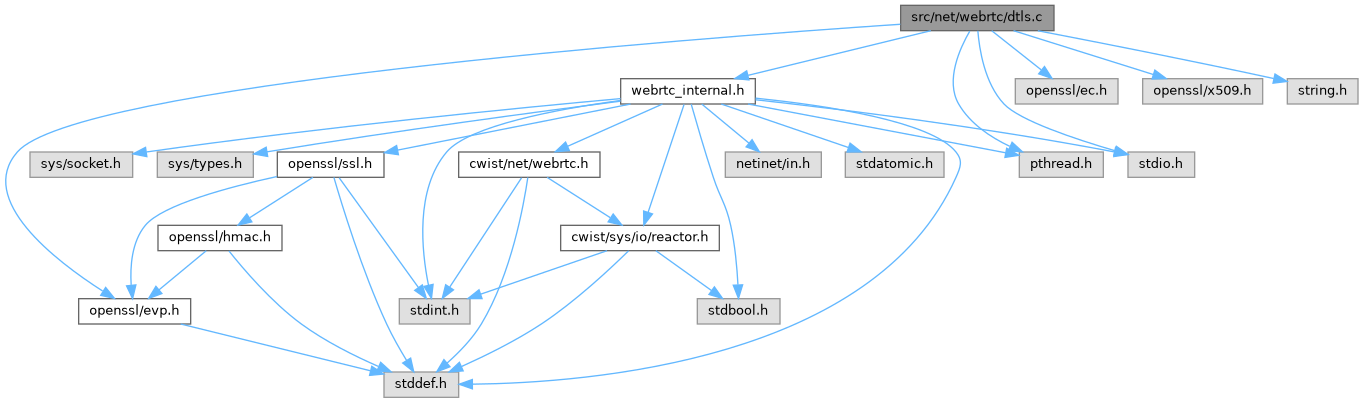

Include dependency graph for dtls.c:

Go to the source code of this file.

Macros
#define	CWIST_DTLS_MTU   1200
	DTLS record/link MTU assumed for the media path (bytes). Used to size outgoing DTLS records so they fit typical UDP/ICE paths without IP fragmentation.

Functions
int	cwist_dtls_generate_cert (X509 **cert_out, EVP_PKEY **pkey_out)
	Generate an ephemeral self-signed ECDSA certificate for DTLS.
int	cwist_dtls_fingerprint (X509 *cert, char *out, size_t cap)
	Compute the SHA-256 fingerprint of a certificate in SDP format.
SSL_CTX *	cwist_dtls_ctx_new (int is_server, X509 *cert, EVP_PKEY *pkey)
	Create a DTLS SSL_CTX for the client or server role.
unsigned int	cwist_dtls_link_mtu (void)
	Return the DTLS link MTU in bytes.
BIO *	cwist_dtls_bio_new (struct cwist_webrtc_conn *conn)
	Datagram BIO for conn: reads return conn->dtls_in once, writes go to cwist_webrtc_conn_dtls_out() one datagram per call.

Detailed Description

DTLS helpers: ephemeral certificate generation, fingerprint, SSL_CTX.

Provides the minimal DTLS layer for WebRTC: an ephemeral self-signed ECDSA certificate, the SHA-256 certificate fingerprint used in SDP a=fingerprint attributes, construction of client/server SSL_CTX objects pinned to DTLS 1.2, and the datagram BIO the sessions run on.

Definition in file dtls.c.

Macro Definition Documentation

CWIST_DTLS_MTU

#define CWIST_DTLS_MTU   1200

DTLS record/link MTU assumed for the media path (bytes). Used to size outgoing DTLS records so they fit typical UDP/ICE paths without IP fragmentation.

Definition at line 22 of file dtls.c.

Function Documentation

cwist_dtls_bio_new()

BIO * cwist_dtls_bio_new

(

struct cwist_webrtc_conn *

conn

)

Datagram BIO for conn: reads return conn->dtls_in once, writes go to cwist_webrtc_conn_dtls_out() one datagram per call.

Definition at line 211 of file dtls.c.

References cap.

cwist_dtls_ctx_new()

SSL_CTX * cwist_dtls_ctx_new	(	int	is_server,
		X509 *	cert,
		EVP_PKEY *	pkey
	)

Create a DTLS SSL_CTX for the client or server role.

DTLS 1.2 SSL_CTX for the server (with cert) or client role.

Parameters

is_server	Non-zero to build a DTLS server context, zero for a DTLS client context.
cert	Server certificate; used (with pkey) only when is_server is non-zero. May be NULL for a client.
pkey	Private key matching cert; only used for a server.

Returns

New SSL_CTX on success, NULL on allocation failure or when certificate/key loading or validation fails on the server side.

Note

The context is pinned to DTLS 1.2 as the minimum protocol version. Client contexts use SSL_VERIFY_NONE: peer fingerprint verification is deferred to the SDP exchange (the test pins the expected fingerprint out of band).

Definition at line 120 of file dtls.c.

References cap, SSL_CTX_check_private_key, SSL_CTX_free, SSL_CTX_new, SSL_CTX_set_min_proto_version, SSL_CTX_set_verify, and SSL_VERIFY_NONE.

cwist_dtls_fingerprint()

int cwist_dtls_fingerprint	(	X509 *	cert,
		char *	out,
		size_t	cap
	)

Compute the SHA-256 fingerprint of a certificate in SDP format.

SHA-256 fingerprint of cert in SDP form ("AB:CD:...").

Parameters

cert	Certificate to hash; must be non-NULL.
out	Output buffer receiving the fingerprint text.
cap	Capacity of out in bytes (including the NUL terminator).

Returns

0 on success, -1 if the DER encoding fails, the certificate exceeds the internal 2048-byte DER buffer, or the digest does not fit in out.

Return values

0	Fingerprint written, e.g. "AB:12:...:EF" in uppercase hex.
-1	Encoding, size, or digest error.

Note

The result is the colon-separated uppercase hex SHA-256 digest as used in the SDP a=fingerprint attribute. No terminator is written beyond what snprintf() already emits.

Definition at line 90 of file dtls.c.

References cap, EVP_MAX_MD_SIZE, and EVP_sha256.

cwist_dtls_generate_cert()

int cwist_dtls_generate_cert	(	X509 **	cert_out,
		EVP_PKEY **	pkey_out
	)

Generate an ephemeral self-signed ECDSA certificate for DTLS.

Generate an ephemeral self-signed P-256 certificate.

Parameters

cert_out	Receives a new X509 certificate; set to NULL on entry and on failure.
pkey_out	Receives the matching EVP_PKEY; set to NULL on entry and on failure.

Returns

0 on success, -1 on any OpenSSL error.

Note

The key is P-256 (NID_X9_62_prime256v1). The certificate has version 3 (v2 encoding), serial 1, a 30-day validity starting now, and CN "cwist-webrtc". On failure all intermediate objects are freed and both outputs remain NULL; on success ownership moves to the caller, who must free them with X509_free()/EVP_PKEY_free().

Definition at line 36 of file dtls.c.

References cap, and EVP_sha256.

cwist_dtls_link_mtu()

unsigned int cwist_dtls_link_mtu

(

void

)

Return the DTLS link MTU in bytes.

DTLS link MTU (bytes per datagram) used for handshake fragmentation.

Returns

The value of CWIST_DTLS_MTU (1200).

Definition at line 142 of file dtls.c.

References CWIST_DTLS_MTU.
