cwist_http3_context Struct Reference

HTTP/3 server context encapsulating lsquic/BoringSSL settings. More...

#include <http3.h>

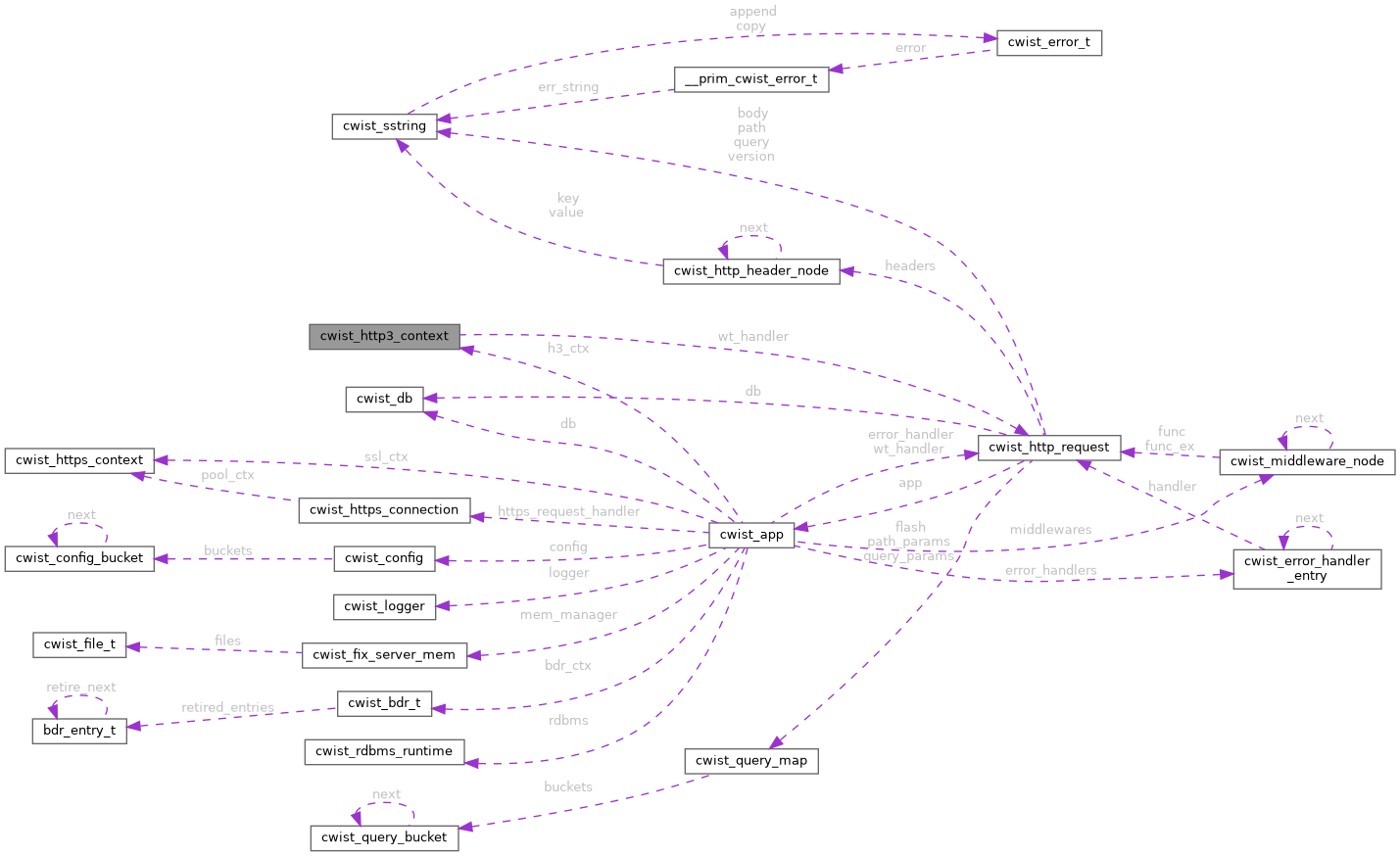

Collaboration diagram for cwist_http3_context:

Public Attributes
SSL_CTX *	ssl_ctx
int	udp_fd
void *	engine
void(*	handler )(void *user_ctx, cwist_http_request *req, cwist_http_response *res)
void *	user_ctx
volatile int	running
int	push_enabled
int	early_data_enabled
int	early_data_guard
int	allow_migration
int	datagram_enabled
void(*	datagram_cb )(const void *data, size_t len, void *user_ctx)
void *	datagram_user_ctx
cwist_webtransport_handler_func	wt_handler
void(*	wt_new_stream_handler )(void *stream, void *user_ctx)
void *	wt_new_stream_ctx
int	idle_timeout_ms
int	handshake_timeout_ms
int	ping_period_ms
int	noprogress_timeout_ms
void *	hsets
pthread_rwlock_t	ssl_ctx_lock
SSL_CTX *	ssl_ctx_handout
void *	ticket_key

Detailed Description

HTTP/3 server context encapsulating lsquic/BoringSSL settings.

— HTTP/3 Structures —

Definition at line 35 of file http3.h.

Member Data Documentation

allow_migration

int cwist_http3_context::allow_migration

QUIC connection migration enabled

Definition at line 46 of file http3.h.

Referenced by cwist_http3_server_loop().

datagram_cb

void(* cwist_http3_context::datagram_cb) (const void *data, size_t len, void *user_ctx)

Definition at line 48 of file http3.h.

Referenced by cwist_http3_set_datagram_callback().

datagram_enabled

int cwist_http3_context::datagram_enabled

QUIC datagram extension enabled

Definition at line 47 of file http3.h.

Referenced by cwist_http3_server_loop(), and cwist_http3_set_datagram_enabled().

datagram_user_ctx

void* cwist_http3_context::datagram_user_ctx

Definition at line 49 of file http3.h.

Referenced by cwist_http3_set_datagram_callback().

early_data_enabled

int cwist_http3_context::early_data_enabled

0-RTT early data enabled

Definition at line 44 of file http3.h.

Referenced by cwist_http3_reload_context(), and cwist_http3_set_early_data().

early_data_guard

int cwist_http3_context::early_data_guard

Restrict 0-RTT requests to idempotent methods

Definition at line 45 of file http3.h.

Referenced by cwist_http3_set_early_data(), and cwist_http3_set_early_data_guard().

engine

void* cwist_http3_context::engine

Opaque lsquic_engine_t pointer

Definition at line 38 of file http3.h.

Referenced by cwist_http3_destroy_context(), and cwist_http3_server_loop().

handler

void(* cwist_http3_context::handler) (void *user_ctx, cwist_http_request *req, cwist_http_response *res)

Definition at line 39 of file http3.h.

Referenced by cwist_http3_server_loop().

handshake_timeout_ms

int cwist_http3_context::handshake_timeout_ms

0 = use lsquic default (10s)

Definition at line 55 of file http3.h.

Referenced by cwist_http3_server_loop(), and cwist_http3_set_handshake_timeout().

hsets

void* cwist_http3_context::hsets

Head of tracked cwist_h3_hset list (internal; swept on engine destroy)

Definition at line 58 of file http3.h.

idle_timeout_ms

int cwist_http3_context::idle_timeout_ms

0 = use lsquic default (30s)

Definition at line 54 of file http3.h.

Referenced by cwist_http3_server_loop(), and cwist_http3_set_idle_timeout().

noprogress_timeout_ms

int cwist_http3_context::noprogress_timeout_ms

0 = use lsquic default (60s server)

Definition at line 57 of file http3.h.

Referenced by cwist_http3_server_loop(), and cwist_http3_set_noprogress_timeout().

ping_period_ms

int cwist_http3_context::ping_period_ms

0 = use lsquic default (server: none)

Definition at line 56 of file http3.h.

Referenced by cwist_http3_server_loop(), and cwist_http3_set_ping_period().

push_enabled

int cwist_http3_context::push_enabled

HTTP/3 server push enabled

Definition at line 43 of file http3.h.

Referenced by cwist_http3_server_loop(), and cwist_http3_set_push_enabled().

running

volatile int cwist_http3_context::running

Set to 0 to gracefully stop server_loop; from another thread use __atomic_store_n(&ctx->running, 0, __ATOMIC_RELEASE).

Definition at line 41 of file http3.h.

Referenced by cwist_http3_server_loop().

ssl_ctx

SSL_CTX* cwist_http3_context::ssl_ctx

BoringSSL server context

Definition at line 36 of file http3.h.

Referenced by cwist_http3_destroy_context(), cwist_http3_reload_context(), and cwist_http3_set_early_data().

ssl_ctx_handout

SSL_CTX* cwist_http3_context::ssl_ctx_handout

Definition at line 68 of file http3.h.

Referenced by cwist_http3_destroy_context().

ssl_ctx_lock

pthread_rwlock_t cwist_http3_context::ssl_ctx_lock

Definition at line 67 of file http3.h.

Referenced by cwist_http3_destroy_context(), cwist_http3_reload_context(), and cwist_http3_set_early_data().

ticket_key

void* cwist_http3_context::ticket_key

Definition at line 69 of file http3.h.

Referenced by cwist_http3_destroy_context(), and cwist_http3_reload_context().

udp_fd

int cwist_http3_context::udp_fd

Underlying UDP socket descriptor

Definition at line 37 of file http3.h.

Referenced by cwist_http3_server_loop().

user_ctx

void* cwist_http3_context::user_ctx

Definition at line 40 of file http3.h.

Referenced by cwist_http3_server_loop().

wt_handler

cwist_webtransport_handler_func cwist_http3_context::wt_handler

WebTransport session handler

Definition at line 50 of file http3.h.

Referenced by cwist_http3_server_loop(), and cwist_http3_set_webtransport_handler().

wt_new_stream_ctx

void* cwist_http3_context::wt_new_stream_ctx

User context for wt_new_stream_handler

Definition at line 53 of file http3.h.

Referenced by cwist_webtransport_set_new_stream_handler().

wt_new_stream_handler

void(* cwist_http3_context::wt_new_stream_handler) (void *stream, void *user_ctx)

Callback for new WT data streams

Definition at line 51 of file http3.h.

Referenced by cwist_webtransport_set_new_stream_handler().

---

The documentation for this struct was generated from the following file:

• include/cwist/net/http/http3.h
