Auto-Caching Layer for repetitive requests. More...

#include <cwist/core/sstring/sstring.h>
#include <stdint.h>
#include <stdbool.h>
#include <stdatomic.h>
#include <time.h>
#include <pthread.h>

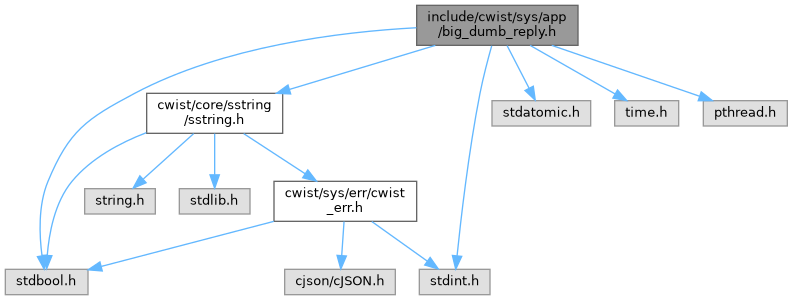

Include dependency graph for big_dumb_reply.h:

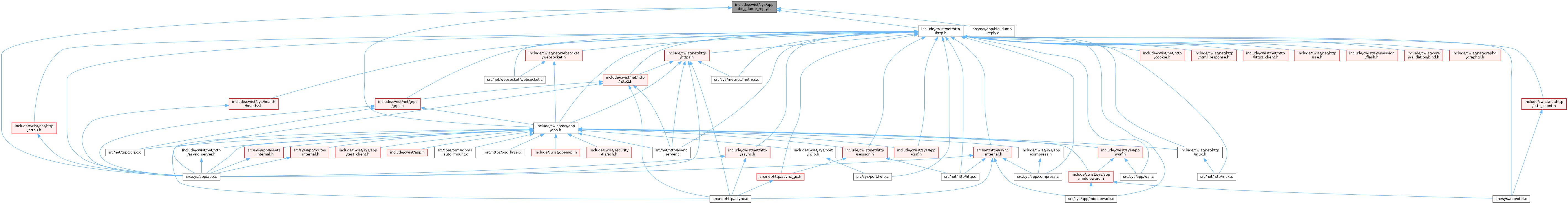

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	bdr_blob_t
	Refcount-free cached response blob, reclaimed via libttak EBR. More...

struct	bdr_entry_t
	Big Dumb Reply Entry. Holds an atomically swappable cached response blob. More...

struct	cwist_bdr_cursor

struct	cwist_bdr_t
	Big Dumb Reply Context. Lock-free read/learn paths; the mutex only serializes janitor work (sweep/trim/disk spill) and the disk-fallback path. More...

Macros
#define	CWIST_BDR_CURSOR_PATH_MAX 128
	Per-connection cursor that turns repeated hits of the same route into a content-compare instead of a SipHash + bucket walk.

Typedefs
typedef struct bdr_blob_t	bdr_blob_t
	Refcount-free cached response blob, reclaimed via libttak EBR.

typedef bool(*	cwist_bdr_revalidate_fn) (void arg, void out_data, size_t out_len, void(*out_free) (void ))
	Revalidation callback attached to a cache entry.

typedef struct bdr_entry_t	bdr_entry_t
	Big Dumb Reply Entry. Holds an atomically swappable cached response blob.

typedef struct cwist_bdr_cursor	cwist_bdr_cursor_t

typedef struct cwist_bdr_t	cwist_bdr_t
	Big Dumb Reply Context. Lock-free read/learn paths; the mutex only serializes janitor work (sweep/trim/disk spill) and the disk-fallback path.

Functions
cwist_bdr_t *	cwist_bdr_create (void)
	Creates a BDR context.

void	cwist_bdr_destroy (cwist_bdr_t *bdr)
	Destroys a BDR context and frees all cached blobs.

const void *	cwist_bdr_get (cwist_bdr_t bdr, const char method, const char path, size_t out_len)
	Try to find a cached response.

const void *	cwist_bdr_get_pinned (cwist_bdr_t bdr, const char method, const char path, size_t out_len, bdr_blob_t **out_pin)
	Find a cached response and pin it for the duration of the serve.

const void *	cwist_bdr_get_pinned_cursor (cwist_bdr_t bdr, const char method, const char path, size_t path_len, size_t out_len, bdr_blob_t *out_pin, cwist_bdr_cursor_t cursor)
	cwist_bdr_get_pinned() with a per-connection fast path.

void	cwist_bdr_unpin (bdr_blob_t *pin)
	Release a pin acquired by cwist_bdr_get_pinned().

void *	cwist_bdr_copy_get (cwist_bdr_t bdr, const char method, const char path, size_t out_len)
	Copy a stable response from the cache for concurrent server use.

void	cwist_bdr_put (cwist_bdr_t bdr, const char method, const char path, const void data, size_t len)
	Store a response in the cache (lock-free learn path).

void	cwist_bdr_put_fixed (cwist_bdr_t bdr, const char method, const char path, const void data, size_t len)
	Immediately cache a fixed static response on request 1.

void	cwist_bdr_put_revalidatable (cwist_bdr_t bdr, const char method, const char path, const void data, size_t len, cwist_bdr_revalidate_fn fn, void *arg)
	Cache a response whose backing value may change over time.

void	cwist_bdr_set_limits (cwist_bdr_t *bdr, size_t max_bytes, time_t max_entry_age_sec, uint64_t revalidate_hits)
	Adjusts guard-rail policies for the in-memory cache.

Detailed Description

Auto-Caching Layer for repetitive requests.

Definition in file big_dumb_reply.h.

Macro Definition Documentation

◆ CWIST_BDR_CURSOR_PATH_MAX

#define CWIST_BDR_CURSOR_PATH_MAX 128

Per-connection cursor that turns repeated hits of the same route into a content-compare instead of a SipHash + bucket walk.

Keep-alive clients overwhelmingly repeat the same few routes; the cursor remembers the last served entry and its path, so the next lookup on the same connection only memcmps the path (usually a handful of bytes) and re-validates the entry state under the EBR epoch exactly like a full lookup. It holds no ownership: entries are tombstoned rather than freed, and every use re-checks retirement/stability, so a stale cursor degrades to a normal miss, never to a wrong serve.

Embed by value (zero-initialized) in per-connection state.

Definition at line 83 of file big_dumb_reply.h.

Typedef Documentation

◆ bdr_blob_t

typedef struct bdr_blob_t bdr_blob_t

Refcount-free cached response blob, reclaimed via libttak EBR.

Readers hold the blob between cwist_bdr_get_pinned() and cwist_bdr_unpin(); writers replace it with a single atomic exchange and retire the predecessor across an epoch boundary, so a swapped-out blob is never freed while a reader still serves it. mem is the backing allocation released with free_fn (cwist_free for internally learned blobs, a user-supplied releaser for callback-provided buffers).

◆ bdr_entry_t

typedef struct bdr_entry_t bdr_entry_t

Big Dumb Reply Entry. Holds an atomically swappable cached response blob.

◆ cwist_bdr_cursor_t

typedef struct cwist_bdr_cursor cwist_bdr_cursor_t

◆ cwist_bdr_revalidate_fn

typedef bool(* cwist_bdr_revalidate_fn) (void *arg, void **out_data, size_t *out_len, void(**out_free)(void *))

Revalidation callback attached to a cache entry.

Invoked on cache hits for entries registered through cwist_bdr_put_revalidatable(). Return false to keep serving the cached blob. Return true when the underlying value changed: *out_data must then point to the freshly serialized response (ownership moves to the cache — zero copy, only the pointer is swung), *out_len to its length, and *out_free to the releaser for that buffer (NULL means cwist_free).

Definition at line 43 of file big_dumb_reply.h.

◆ cwist_bdr_t

typedef struct cwist_bdr_t cwist_bdr_t

Big Dumb Reply Context. Lock-free read/learn paths; the mutex only serializes janitor work (sweep/trim/disk spill) and the disk-fallback path.

Function Documentation

◆ cwist_bdr_copy_get()

void * cwist_bdr_copy_get	(	cwist_bdr_t *	bdr,
		const char *	method,
		const char *	path,
		size_t *	out_len
	)

Copy a stable response from the cache for concurrent server use.

The caller owns the returned buffer and must release it with cwist_free().

Copy a stable response from the cache for concurrent server use.

Unlike cwist_bdr_get(), the returned buffer is allocated with cwist_alloc() and survives cache eviction; the caller frees it with cwist_free().

Parameters

bdr	Cache instance.
method	HTTP method; must be "GET".
path	NUL-terminated request path.
out_len	Receives the copy length on a hit (may be NULL).

Returns: Newly allocated copy of the reply, or NULL on miss/invalid input/allocation failure.

Definition at line 727 of file big_dumb_reply.c.

References cap, cwist_alloc(), cwist_bdr_get_pinned(), and cwist_bdr_unpin().

◆ cwist_bdr_create()

cwist_bdr_t * cwist_bdr_create ( void )

Creates a BDR context.

Initializes the mutex, the bucket table, and the default tuning values (32 MiB byte budget, 300 s entry TTL, 100000 revalidate hits).

Returns: New cache instance on success, NULL on allocation or mutex failure.

Definition at line 475 of file big_dumb_reply.c.

References BDR_BUCKETS, BDR_DEFAULT_ENTRY_TTL, BDR_DEFAULT_MAX_BYTES, BDR_DEFAULT_REVALIDATE_HITS, cap, cwist_alloc(), cwist_alloc_array(), and cwist_free().

Referenced by cwist_app_create().

◆ cwist_bdr_destroy()

void cwist_bdr_destroy ( cwist_bdr_t * bdr )

Destroys a BDR context and frees all cached blobs.

Frees every live and retired entry and its blob, the bucket table, and the disk fallback database (including the "cwist_bdr_fallback.db" file). Safe to call with NULL.

Parameters

bdr	Cache instance to destroy, or NULL.

Definition at line 511 of file big_dumb_reply.c.

References cap, cwist_free(), and bdr_entry_t::retire_next.

Referenced by cwist_app_destroy().

◆ cwist_bdr_get()

const void * cwist_bdr_get	(	cwist_bdr_t *	bdr,
		const char *	method,
		const char *	path,
		size_t *	out_len
	)

Try to find a cached response.

Parameters

bdr	Context.
method	HTTP Method (only GET supported).
path	Request path.
out_len	[out] Length of the found blob.

Returns: Pointer to the blob if found, NULL otherwise.

Note: Legacy convenience wrapper: the returned pointer is not protected against concurrent replacement. New code that serves the blob should use cwist_bdr_get_pinned()/cwist_bdr_unpin().

Try to find a cached response.

Convenience wrapper over cwist_bdr_get_pinned() that unpins immediately, so the returned pointer is only valid until the next janitor activity that could retire the entry; prefer the pinned API for anything but a memcpy.

Parameters

bdr	Cache instance.
method	HTTP method; must be "GET".
path	NUL-terminated request path.
out_len	Receives the reply length on a hit (may be NULL).

Returns: Reply bytes (unpinned), or NULL on miss/invalid input.

Definition at line 708 of file big_dumb_reply.c.

References cap, cwist_bdr_get_pinned(), and cwist_bdr_unpin().

Referenced by cwist_app_http_handler().

◆ cwist_bdr_get_pinned()

const void * cwist_bdr_get_pinned	(	cwist_bdr_t *	bdr,
		const char *	method,
		const char *	path,
		size_t *	out_len,
		bdr_blob_t **	out_pin
	)

Find a cached response and pin it for the duration of the serve.

The pin is an EBR epoch: the blob stays valid until cwist_bdr_unpin(), even if a concurrent learn or revalidation swaps it out. Runs the entry's revalidation hook first when one is registered.

Parameters

bdr	Context.
method	HTTP Method (only GET supported).
path	Request path.
out_len	[out] Length of the found blob.
out_pin	[out] Opaque pin handle for cwist_bdr_unpin().

Returns: Pointer to the blob bytes if found, NULL otherwise.

Find a cached response and pin it for the duration of the serve.

Only GET requests are served, and only while the cache is in RAM mode. The caller must release the pin with cwist_bdr_unpin() once done reading.

Parameters

bdr	Cache instance.
method	HTTP method; must be "GET".
path	NUL-terminated request path.
out_len	Receives the reply length on a hit (may be NULL).
out_pin	Receives the pin to pass to cwist_bdr_unpin().

Returns: Reply bytes pinned for the caller, or NULL on miss/invalid input.

Definition at line 616 of file big_dumb_reply.c.

References cap.

Referenced by cwist_bdr_copy_get(), and cwist_bdr_get().

◆ cwist_bdr_get_pinned_cursor()

const void * cwist_bdr_get_pinned_cursor	(	cwist_bdr_t *	bdr,
		const char *	method,
		const char *	path,
		size_t	path_len,
		size_t *	out_len,
		bdr_blob_t **	out_pin,
		cwist_bdr_cursor_t *	cursor
	)

cwist_bdr_get_pinned() with a per-connection fast path.

Identical semantics to cwist_bdr_get_pinned() (same epoch pin, same revalidation hook, same stability checks), but when cursor remembers the same path the SipHash and bucket walk are skipped: the cached entry pointer is re-validated under the epoch instead. Falls back to the full lookup on any mismatch and refreshes the cursor on success. path_len must be the exact path length in bytes (no strlen is performed).

cwist_bdr_get_pinned() with a per-connection fast path.

When the cursor's cached entry still matches the request it is used as a lookup hint; a stale hint degrades to a full bucket walk. On a hit the cursor is refreshed to point at the served entry, so repeated reads of the same path skip the chain walk.

Parameters

bdr	Cache instance.
method	HTTP method; must be "GET".
path	Request path bytes (not required to be NUL-terminated).
path_len	Length of `path` in bytes.
out_len	Receives the reply length on a hit (may be NULL).
out_pin	Receives the pin to pass to cwist_bdr_unpin().
cursor	Reusable lookup cursor, updated on every call.

Returns: Reply bytes pinned for the caller, or NULL on miss/invalid input.

Definition at line 642 of file big_dumb_reply.c.

References cap, and CWIST_BDR_CURSOR_PATH_MAX.

◆ cwist_bdr_put()

void cwist_bdr_put	(	cwist_bdr_t *	bdr,
		const char *	method,
		const char *	path,
		const void *	data,
		size_t	len
	)

Store a response in the cache (lock-free learn path).

Parameters

bdr	Context.
method	HTTP Method.
path	Request path.
data	Serialized response data.
len	Length of data.

Store a response in the cache (lock-free learn path).

Must be called only while the cache is in disk mode; takes the context mutex for the duration of the statement.

Parameters

bdr	Cache instance (disk_db must be open).
req_h	Precomputed request hash (primary key).
data	Response bytes.
len	Length of `data` in bytes.

Learn a reply observation into the cache (lock-free fast path).

Only GET replies are tracked. An entry stabilizes once the same response bytes are seen twice in a row; a content change under a stable entry demotes it back to candidate. In disk mode the observation is written to SQLite instead. Triggers the janitor tick periodically.

Parameters

bdr	Cache instance.
method	HTTP method; must be "GET".
path	NUL-terminated request path.
data	Observed response bytes.
len	Length of `data` in bytes.

Definition at line 784 of file big_dumb_reply.c.

References cap, bdr_entry_t::created_at, bdr_entry_t::hits, bdr_entry_t::is_stable, and bdr_entry_t::response_hash.

◆ cwist_bdr_put_fixed()

void cwist_bdr_put_fixed	(	cwist_bdr_t *	bdr,
		const char *	method,
		const char *	path,
		const void *	data,
		size_t	len
	)

Immediately cache a fixed static response on request 1.

For responses that are known to be constant; stores the bytes and marks the entry stable in one shot. In disk mode the observation is written to SQLite instead. Triggers the janitor tick periodically.

Parameters

bdr	Cache instance.
method	HTTP method; must be "GET".
path	NUL-terminated request path.
data	Response bytes to cache.
len	Length of `data` in bytes.

Definition at line 848 of file big_dumb_reply.c.

References cap, bdr_entry_t::created_at, bdr_entry_t::hits, bdr_entry_t::is_stable, and bdr_entry_t::response_hash.

◆ cwist_bdr_put_revalidatable()

void cwist_bdr_put_revalidatable	(	cwist_bdr_t *	bdr,
		const char *	method,
		const char *	path,
		const void *	data,
		size_t	len,
		cwist_bdr_revalidate_fn	fn,
		void *	arg
	)

Cache a response whose backing value may change over time.

Behaves like cwist_bdr_put_fixed() (stable from the first request) but attaches fn to the entry. Every cache hit invokes fn first; when it reports a change, the new buffer it supplies is published with a single pointer exchange — no memcpy, no global lock — and the old blob is retired across an epoch boundary.

Cache a response whose backing value may change over time.

On every subsequent hit the hook is invoked and, if it reports fresh bytes, the entry's blob is swapped to the callback-provided buffer through one pointer exchange. The hook is published before the blob so a reader never observes a revalidatable blob without its hook. In disk mode the observation is written to SQLite instead (hook not persisted). Triggers the janitor tick periodically.

Parameters

bdr	Cache instance.
method	HTTP method; must be "GET".
path	NUL-terminated request path.
data	Response bytes to cache.
len	Length of `data` in bytes.
fn	Revalidation callback invoked on hits.
arg	Opaque argument passed to `fn`.

Definition at line 894 of file big_dumb_reply.c.

References cap, bdr_entry_t::created_at, bdr_entry_t::hits, bdr_entry_t::is_stable, bdr_entry_t::response_hash, bdr_entry_t::revalidate, and bdr_entry_t::revalidate_arg.

◆ cwist_bdr_set_limits()

void cwist_bdr_set_limits	(	cwist_bdr_t *	bdr,
		size_t	max_bytes,
		time_t	max_entry_age_sec,
		uint64_t	revalidate_hits
	)

Adjusts guard-rail policies for the in-memory cache.

Parameters

bdr	Context.
max_bytes	Maximum bytes to keep in RAM (0 keeps default).
max_entry_age_sec	Time-to-live for cached entries (<=0 keeps default).
revalidate_hits	Force relearning after this many hits (0 keeps default).

Adjusts guard-rail policies for the in-memory cache.

Takes the context mutex so the new limits are not torn against a running janitor tick.

Parameters

bdr	Cache instance.
max_bytes	New byte budget; 0 keeps the current value.
max_entry_age_sec	New entry TTL in seconds; 0 keeps the current value.
revalidate_hits	New stability hit threshold; 0 keeps the current value.

Definition at line 940 of file big_dumb_reply.c.

References cap.

Referenced by cwist_app_configure_bdr().

◆ cwist_bdr_unpin()

void cwist_bdr_unpin ( bdr_blob_t * pin )

Release a pin acquired by cwist_bdr_get_pinned().

The pin is the EBR epoch itself, so this simply leaves the epoch.

Parameters

pin	Pin to release (ignored beyond symmetry with the get calls).

Definition at line 690 of file big_dumb_reply.c.

References cap.

Referenced by cwist_bdr_copy_get(), and cwist_bdr_get().

Classes

Macros

Typedefs

Functions

Detailed Description

Macro Definition Documentation

◆ CWIST_BDR_CURSOR_PATH_MAX

Typedef Documentation

◆ bdr_blob_t

◆ bdr_entry_t

◆ cwist_bdr_cursor_t

◆ cwist_bdr_revalidate_fn

◆ cwist_bdr_t

Function Documentation

◆ cwist_bdr_copy_get()

◆ cwist_bdr_create()

◆ cwist_bdr_destroy()

◆ cwist_bdr_get()

◆ cwist_bdr_get_pinned()

◆ cwist_bdr_get_pinned_cursor()

◆ cwist_bdr_put()

◆ cwist_bdr_put_fixed()

◆ cwist_bdr_put_revalidatable()

◆ cwist_bdr_set_limits()

◆ cwist_bdr_unpin()
