bind.h File Reference

Declarative Schema Validation and Type-Safe Binding for CWIST. More...

#include <cwist/net/http/http.h>
#include <cwist/core/sstring/sstring.h>
#include <cwist/core/utils/json_builder.h>
#include <cjson/cJSON.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <regex.h>

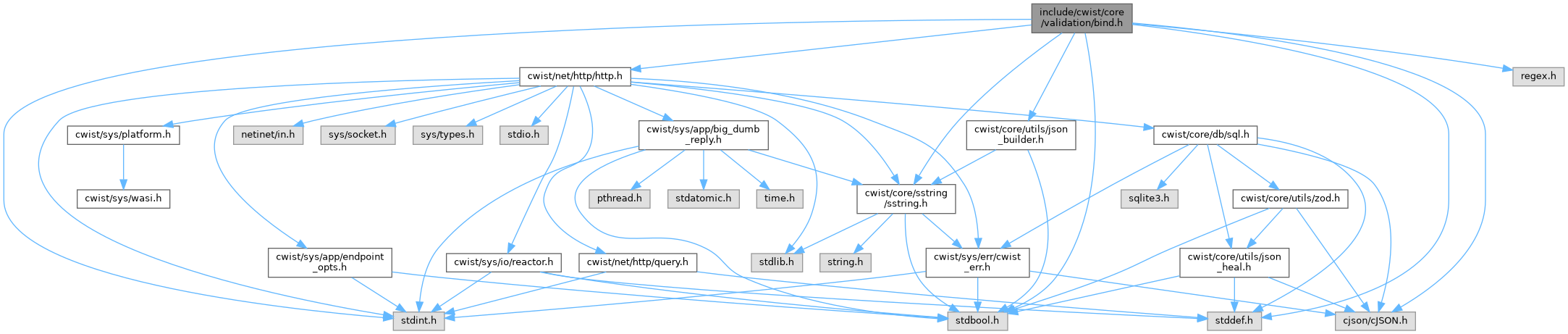

Include dependency graph for bind.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	cwist_bind_rule
	Single validation rule attached to a field. More...
struct	cwist_bind_field
	Per-field binding descriptor. More...
struct	cwist_bind_schema
	Complete schema descriptor for a struct. More...
struct	cwist_bind_error
	A single bind/validation failure. More...
struct	cwist_bind_result
	Result of a bind operation. More...

Macros
#define	CWIST_BIND_MAX_ERRORS   32
#define	CWIST_BIND_MSG_MAX   256
#define	CWIST_BIND_KEY_MAX   64
#define	CWIST_BIND_TYPEOF(x)
	Internal helper that resolves the cwist_bind_field_type_t for a C expression.
#define	CWIST_BIND_OFFSET(st, m)   offsetof(st, m)
	Compute the byte offset of a member inside a struct type.
#define	CWIST_BIND_SIZEOF(st, m)   sizeof(((st *)0)->m)
	Compute the size of a struct member.
#define	CWIST_BIND_RULES(name, ...)    static const cwist_bind_rule_t name[] = {__VA_ARGS__, {-1, {0}, NULL}}
	Declare a static rule array suitable for use with CWIST_BIND_FIELD.
#define	CWIST_BIND_FIELD(StructType, MemberName, JsonKey, RulesArray)
	Helper to declare a field descriptor with automatic type inference.
#define	CWIST_BIND_SCHEMA(StructType, FieldArray)
	Build a schema descriptor from an array of field descriptors.
#define	CWIST_RULE_REQUIRED()
#define	CWIST_RULE_MIN_LEN(n)
#define	CWIST_RULE_MAX_LEN(n)
#define	CWIST_RULE_MIN_VAL(v)
#define	CWIST_RULE_MAX_VAL(v)
#define	CWIST_RULE_REGEX(pat)
#define	CWIST_RULE_EMAIL()
#define	CWIST_RULE_CUSTOM(fn_ptr, ctx_ptr)

Typedefs
typedef enum cwist_bind_rule_type	cwist_bind_rule_type_t
	Supported validation constraint types.
typedef struct cwist_bind_rule	cwist_bind_rule_t
	Single validation rule attached to a field.
typedef enum cwist_bind_field_type	cwist_bind_field_type_t
	Logical type of a bind target field.
typedef struct cwist_bind_field	cwist_bind_field_t
	Per-field binding descriptor.
typedef struct cwist_bind_schema	cwist_bind_schema_t
	Complete schema descriptor for a struct.
typedef struct cwist_bind_error	cwist_bind_error_t
	A single bind/validation failure.
typedef struct cwist_bind_result	cwist_bind_result_t
	Result of a bind operation.

Enumerations
enum	cwist_bind_rule_type {   CWIST_BIND_RULE_REQUIRED , CWIST_BIND_RULE_MIN_LEN , CWIST_BIND_RULE_MAX_LEN , CWIST_BIND_RULE_MIN_VAL ,   CWIST_BIND_RULE_MAX_VAL , CWIST_BIND_RULE_REGEX , CWIST_BIND_RULE_EMAIL , CWIST_BIND_RULE_CUSTOM }
	Supported validation constraint types. More...
enum	cwist_bind_field_type {   CWIST_BIND_BOOL , CWIST_BIND_INT , CWIST_BIND_UINT , CWIST_BIND_FLOAT ,   CWIST_BIND_DOUBLE , CWIST_BIND_STRING , CWIST_BIND_SSTRING , CWIST_BIND_JSON_OBJECT }
	Logical type of a bind target field. More...

Functions
bool	cwist_app_req_bind_json (cwist_http_request *req, const cwist_bind_schema_t *schema, void *out, cwist_bind_result_t *result)
	Bind a JSON payload to a user struct according to a schema.
bool	cwist_app_req_bind_form (cwist_http_request *req, const cwist_bind_schema_t *schema, void *out, cwist_bind_result_t *result)
	Bind URL-encoded form data to a user struct.
void	cwist_bind_write_error_response (cwist_http_response *res, const cwist_bind_result_t *result)
	Populate a response with 400 Bad Request and a JSON error payload.
bool	cwist_app_req_bind_json_or_400 (cwist_http_request *req, cwist_http_response *res, const cwist_bind_schema_t *schema, void *out)
	Convenience wrapper: bind JSON and auto-respond 400 on failure.

Detailed Description

Declarative Schema Validation and Type-Safe Binding for CWIST.

Provides a _Generic-driven dispatch layer that maps JSON/Form payloads directly into user-defined C structures with zero-copy semantics where possible. Validation rules (REQUIRED, MIN/MAX, REGEX, EMAIL) are evaluated at bind-time and automatically produce 400 Bad Request responses with descriptive JSON error payloads on failure.

Definition in file bind.h.

Macro Definition Documentation

CWIST_BIND_FIELD

#define CWIST_BIND_FIELD	(		StructType,
			MemberName,
			JsonKey,
			RulesArray
	)

Value:

    {.json_key = (JsonKey),                                           \
     .target_type = CWIST_BIND_TYPEOF(((StructType *)0)->MemberName), \
     .target_offset = CWIST_BIND_OFFSET(StructType, MemberName),      \
     .target_size = CWIST_BIND_SIZEOF(StructType, MemberName),        \
     .rules = (RulesArray)}

Helper to declare a field descriptor with automatic type inference.

Parameters

StructType	The C struct type being bound (e.g., struct user).
MemberName	The member name inside the struct (e.g., email).
JsonKey	The JSON key that maps to this member.
RulesArray	A cwist_bind_rule_t array created with CWIST_BIND_RULES.

Example:

typedef struct { char email[128]; int age; } user_t;
CWIST_BIND_RULES(email_rules, CWIST_RULE_REQUIRED(), CWIST_RULE_EMAIL());
CWIST_BIND_RULES(age_rules,
    CWIST_RULE_MIN_VAL(18),
    CWIST_RULE_MAX_VAL(120));

static const cwist_bind_field_t user_fields[] = {
    CWIST_BIND_FIELD(user_t, email, "email", email_rules),
    CWIST_BIND_FIELD(user_t, age,   "age",   age_rules),
};

Definition at line 253 of file bind.h.

CWIST_BIND_KEY_MAX

#define CWIST_BIND_KEY_MAX   64

Definition at line 96 of file bind.h.

CWIST_BIND_MAX_ERRORS

#define CWIST_BIND_MAX_ERRORS   32

Definition at line 94 of file bind.h.

CWIST_BIND_MSG_MAX

#define CWIST_BIND_MSG_MAX   256

Definition at line 95 of file bind.h.

CWIST_BIND_OFFSET

#define CWIST_BIND_OFFSET	(		st,
			m
	)		offsetof(st, m)

Compute the byte offset of a member inside a struct type.

Definition at line 208 of file bind.h.

CWIST_BIND_RULES

#define CWIST_BIND_RULES	(		name,
			...
	)		static const cwist_bind_rule_t name[] = {__VA_ARGS__, {-1, {0}, NULL}}

Declare a static rule array suitable for use with CWIST_BIND_FIELD.

Parameters

name	C identifier for the array.
...	cwist_bind_rule_t initialiser list.

Example:

CWIST_BIND_RULES(email_rules,
    CWIST_RULE_REQUIRED(),
    CWIST_RULE_EMAIL());

Definition at line 228 of file bind.h.

CWIST_BIND_SCHEMA

#define CWIST_BIND_SCHEMA	(		StructType,
			FieldArray
	)

Value:

    (cwist_bind_schema_t) {                                                                  \
        .fields = (FieldArray), .field_count = sizeof(FieldArray) / sizeof((FieldArray)[0]), \
        .struct_size = sizeof(StructType)                                                    \
    }

Build a schema descriptor from an array of field descriptors.

Definition at line 263 of file bind.h.

CWIST_BIND_SIZEOF

#define CWIST_BIND_SIZEOF	(		st,
			m
	)		sizeof(((st *)0)->m)

Compute the size of a struct member.

Definition at line 213 of file bind.h.

CWIST_BIND_TYPEOF

#define CWIST_BIND_TYPEOF

(

x

)

Value:

    _Generic((x),                            \
        bool: CWIST_BIND_BOOL,               \
        char *: CWIST_BIND_STRING,           \
        const char *: CWIST_BIND_STRING,     \
        int: CWIST_BIND_INT,                 \
        unsigned int: CWIST_BIND_UINT,       \
        long: CWIST_BIND_INT,                \
        unsigned long: CWIST_BIND_UINT,      \
        long long: CWIST_BIND_INT,           \
        unsigned long long: CWIST_BIND_UINT, \
        float: CWIST_BIND_FLOAT,             \
        double: CWIST_BIND_DOUBLE,           \
        long double: CWIST_BIND_DOUBLE,      \
        cwist_sstring *: CWIST_BIND_SSTRING, \
        cJSON *: CWIST_BIND_JSON_OBJECT,     \
        default: CWIST_BIND_STRING)

Internal helper that resolves the cwist_bind_field_type_t for a C expression.

Uses C11 _Generic to map common C types to the binding enum. This is the core mechanism that makes the macro API type-safe.

Definition at line 187 of file bind.h.

CWIST_RULE_CUSTOM

#define CWIST_RULE_CUSTOM	(		fn_ptr,
			ctx_ptr
	)

Value:

    (cwist_bind_rule_t) {                                                            \
        CWIST_BIND_RULE_CUSTOM, {.custom = {.fn = (fn_ptr), .ctx = (ctx_ptr)}}, NULL \
    }

Definition at line 308 of file bind.h.

CWIST_RULE_EMAIL

#define CWIST_RULE_EMAIL

(

)

Value:

    (cwist_bind_rule_t) {                \
        CWIST_BIND_RULE_EMAIL, {0}, NULL \
    }

Definition at line 303 of file bind.h.

CWIST_RULE_MAX_LEN

#define CWIST_RULE_MAX_LEN

(

n

)

Value:

    (cwist_bind_rule_t) {                               \
        CWIST_BIND_RULE_MAX_LEN, {.max_len = (n)}, NULL \
    }

Definition at line 283 of file bind.h.

CWIST_RULE_MAX_VAL

#define CWIST_RULE_MAX_VAL

(

v

)

Value:

    (cwist_bind_rule_t) {                               \
        CWIST_BIND_RULE_MAX_VAL, {.max_val = (v)}, NULL \
    }

Definition at line 293 of file bind.h.

CWIST_RULE_MIN_LEN

#define CWIST_RULE_MIN_LEN

(

n

)

Value:

    (cwist_bind_rule_t) {                               \
        CWIST_BIND_RULE_MIN_LEN, {.min_len = (n)}, NULL \
    }

Definition at line 278 of file bind.h.

CWIST_RULE_MIN_VAL

#define CWIST_RULE_MIN_VAL

(

v

)

Value:

    (cwist_bind_rule_t) {                               \
        CWIST_BIND_RULE_MIN_VAL, {.min_val = (v)}, NULL \
    }

Definition at line 288 of file bind.h.

CWIST_RULE_REGEX

#define CWIST_RULE_REGEX

(

pat

)

Value:

    (cwist_bind_rule_t) {                               \
        CWIST_BIND_RULE_REGEX, {.pattern = (pat)}, NULL \
    }

Definition at line 298 of file bind.h.

CWIST_RULE_REQUIRED

#define CWIST_RULE_REQUIRED

(

)

Value:

    (cwist_bind_rule_t) {                   \
        CWIST_BIND_RULE_REQUIRED, {0}, NULL \
    }

Definition at line 273 of file bind.h.

Typedef Documentation

cwist_bind_error_t

typedef struct cwist_bind_error cwist_bind_error_t

A single bind/validation failure.

cwist_bind_field_t

typedef struct cwist_bind_field cwist_bind_field_t

Per-field binding descriptor.

cwist_bind_field_type_t

typedef enum cwist_bind_field_type cwist_bind_field_type_t

Logical type of a bind target field.

cwist_bind_result_t

typedef struct cwist_bind_result cwist_bind_result_t

Result of a bind operation.

cwist_bind_rule_t

typedef struct cwist_bind_rule cwist_bind_rule_t

Single validation rule attached to a field.

cwist_bind_rule_type_t

typedef enum cwist_bind_rule_type cwist_bind_rule_type_t

Supported validation constraint types.

cwist_bind_schema_t

typedef struct cwist_bind_schema cwist_bind_schema_t

Complete schema descriptor for a struct.

Enumeration Type Documentation

cwist_bind_field_type

enum cwist_bind_field_type

Logical type of a bind target field.

Enumerator
CWIST_BIND_BOOL
CWIST_BIND_INT
CWIST_BIND_UINT
CWIST_BIND_FLOAT
CWIST_BIND_DOUBLE
CWIST_BIND_STRING	Null-terminated C string (copied).
CWIST_BIND_SSTRING	cwist_sstring target.
CWIST_BIND_JSON_OBJECT	cJSON * (ownership transferred to caller).

Definition at line 62 of file bind.h.

cwist_bind_rule_type

enum cwist_bind_rule_type

Supported validation constraint types.

Enumerator
CWIST_BIND_RULE_REQUIRED	Field must be present and non-empty.
CWIST_BIND_RULE_MIN_LEN	Minimum string length.
CWIST_BIND_RULE_MAX_LEN	Maximum string length.
CWIST_BIND_RULE_MIN_VAL	Minimum numeric value.
CWIST_BIND_RULE_MAX_VAL	Maximum numeric value.
CWIST_BIND_RULE_REGEX	Must match POSIX extended regular expression.
CWIST_BIND_RULE_EMAIL	Must conform to RFC 5322 simplified email shape.
CWIST_BIND_RULE_CUSTOM	User-supplied predicate.

Definition at line 33 of file bind.h.

Function Documentation

cwist_app_req_bind_form()

bool cwist_app_req_bind_form	(	cwist_http_request *	req,
		const cwist_bind_schema_t *	schema,
		void *	out,
		cwist_bind_result_t *	result
	)

Bind URL-encoded form data to a user struct.

Operates on req->body treating it as application/x-www-form-urlencoded.

Parameters

req	HTTP request whose body contains the form payload.
schema	Bind schema describing the target struct layout.
out	Pointer to the user struct to populate.
result	[out] Detailed validation result.

Returns

true when every field passes validation and the struct is filled.

Bind URL-encoded form data to a user struct.

Uses a simple key=value scan of the body without URL unescaping; values are bounded to an internal buffer before validation.

Parameters

req	HTTP request whose body contains form text; may be NULL.
schema	Declarative field schema; must not be NULL.
out	Destination struct; must not be NULL.
result	Accumulator for validation errors; reset at start.

Returns

true when every field passed validation, false otherwise.

Return values

true	Result is valid and out is fully written.
false	result contains one or more field errors.

Definition at line 446 of file bind.c.

References cwist_http_request::body, cap, and cwist_sstring::data.

cwist_app_req_bind_json()

bool cwist_app_req_bind_json	(	cwist_http_request *	req,
		const cwist_bind_schema_t *	schema,
		void *	out,
		cwist_bind_result_t *	result
	)

Bind a JSON payload to a user struct according to a schema.

The JSON body of req is parsed once and then each field in schema is extracted, validated, and written into out at the specified offset.

On validation failure the function returns false and populates result with per-field error messages. The caller can then pass result to cwist_bind_write_error_response() to emit a 400 response.

Parameters

req	HTTP request whose body contains the JSON payload.
schema	Bind schema describing the target struct layout.
out	Pointer to the user struct to populate.
result	[out] Detailed validation result.

Returns

true when every field passes validation and the struct is filled.

Bind a JSON payload to a user struct according to a schema.

Each schema field is looked up in the parsed JSON body, validated against its rules, and converted into the struct field at f->target_offset. The output struct is written even for fields with no matching key (zero values are written for missing fields).

Parameters

req	HTTP request whose body contains JSON text; may be NULL.
schema	Declarative field schema; must not be NULL.
out	Destination struct; must not be NULL.
result	Accumulator for validation errors; reset at start.

Returns

true when every field passed validation, false otherwise.

Return values

true	Result is valid and out is fully written.
false	result contains one or more field errors.

Definition at line 426 of file bind.c.

References cwist_http_request::body, cap, and cwist_sstring::data.

Referenced by cwist_app_req_bind_json_or_400().

cwist_app_req_bind_json_or_400()

bool cwist_app_req_bind_json_or_400	(	cwist_http_request *	req,
		cwist_http_response *	res,
		const cwist_bind_schema_t *	schema,
		void *	out
	)

Convenience wrapper: bind JSON and auto-respond 400 on failure.

If binding succeeds, the function returns true and out is filled. If binding fails, the function automatically sets res to 400 Bad Request with a JSON error body and returns false.

Parameters

req	HTTP request.
res	HTTP response (may be mutated on failure).
schema	Bind schema.
out	Pointer to the user struct to populate.

Returns

true on success; false when res has been prepped with 400 errors.

Convenience wrapper: bind JSON and auto-respond 400 on failure.

Convenience wrapper around cwist_app_req_bind_json() and cwist_bind_write_error_response() for handlers that want automatic error replies.

Parameters

req	HTTP request whose body contains JSON text; may be NULL.
res	Response receiving the error payload when binding fails.
schema	Declarative field schema; must not be NULL.
out	Destination struct; must not be NULL.

Returns

true when binding succeeded; false when an error response was written.

Return values

true	out is fully written, res untouched.
false	A 400 error response was written to res.

Definition at line 502 of file bind.c.

References cwist_app_req_bind_json(), and cwist_bind_write_error_response().

cwist_bind_write_error_response()

void cwist_bind_write_error_response	(	cwist_http_response *	res,
		const cwist_bind_result_t *	result
	)

Populate a response with 400 Bad Request and a JSON error payload.

The payload follows the shape:

{"success":false,"errors":[{"field":"name","message":"..."},...]}

Parameters

res	Response object to populate.
result	Validation result produced by a failed bind call.

Populate a response with 400 Bad Request and a JSON error payload.

Serializes the accumulated field errors as a JSON object { "success": false, "errors": [ { "field", "message" }, ... ] }, sets the response status and Content-Type, and takes ownership of freeing the temporary JSON builder.

Parameters

res	Response to fill in; ignored when NULL.
result	Bind result containing the errors; ignored when NULL.

Definition at line 463 of file bind.c.

References cwist_http_response::body, cap, CWIST_HTTP_BAD_REQUEST, cwist_http_header_add(), cwist_json_add_bool(), cwist_json_add_string(), cwist_json_begin_array(), cwist_json_begin_object(), cwist_json_builder_create(), cwist_json_builder_destroy(), cwist_json_end_array(), cwist_json_end_object(), cwist_json_get_raw(), cwist_sstring_assign(), cwist_bind_result::error_count, cwist_bind_result::errors, cwist_http_response::headers, cwist_bind_error::key, cwist_bind_error::message, cwist_http_response::status_code, and cwist_http_response::status_text.

Referenced by cwist_app_req_bind_json_or_400().
