seq_auth.c File Reference

#include <cwist/core/seq/seq_auth.h>
#include <cwist/core/mem/alloc.h>
#include <cwist/sys/platform.h>
#include <cwist/core/crypto/sha256.h>
#include <limits.h>
#include <pthread.h>
#include <string.h>

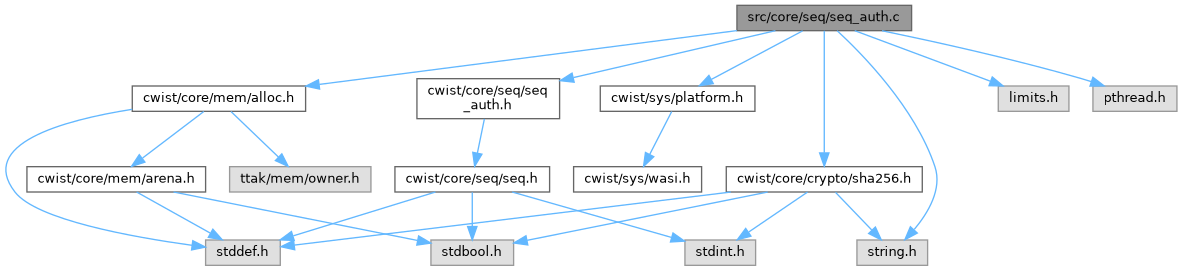

Include dependency graph for seq_auth.c:

Go to the source code of this file.

Macros
#define	SEQ_AUTH_WASM_CRYPTO   1
#define	SEQ_AUTH_TAG_CAP   CWIST_SHA256_DIGEST_LEN
#define	SEQ_AUTH_MEMCMP(a, b, len)   seq_auth_memcmp((a), (b), (len))
#define	SEQ_AUTH_CLEANSE(ptr, len)   memset((ptr), 0, (len))

Functions
cwist_seq_auth_context_t *	cwist_seq_auth_context_create (const uint8_t key[CWIST_SEQ_AUTH_KEY_SIZE], const uint8_t session_id[CWIST_SEQ_AUTH_SESSION_ID_SIZE], size_t replay_window)
	Create an authenticated-sequencing context.
void	cwist_seq_auth_context_destroy (cwist_seq_auth_context_t *ctx)
	Destroy an authenticated-sequencing context.
bool	cwist_seq_auth_random (uint8_t *out, size_t len)
	Fill a buffer with cryptographically secure random bytes.
bool	cwist_seq_auth_wrap (const cwist_seq_auth_context_t *ctx, const uint8_t message_id[CWIST_SEQ_AUTH_MESSAGE_ID_SIZE], const uint8_t nonce[CWIST_SEQ_AUTH_NONCE_SIZE], const uint8_t *chunk, size_t chunk_len, uint8_t **out, size_t *out_len)
	Attach message id, nonce, and authentication tag to a chunk.
bool	cwist_seq_auth_unwrap (cwist_seq_auth_context_t *ctx, const uint8_t *data, size_t len, cwist_seq_auth_metadata_t *metadata, cwist_seq_chunk_t *chunk)
	Verify, authenticate, and split an incoming authenticated chunk.
void	cwist_seq_auth_mark_complete (cwist_seq_auth_context_t *ctx, const uint8_t message_id[CWIST_SEQ_AUTH_MESSAGE_ID_SIZE])
	Record a message id as fully received.

Macro Definition Documentation

SEQ_AUTH_CLEANSE

#define SEQ_AUTH_CLEANSE	(		ptr,
			len
	)		memset((ptr), 0, (len))

Definition at line 50 of file seq_auth.c.

SEQ_AUTH_MEMCMP

#define SEQ_AUTH_MEMCMP	(		a,
			b,
			len
	)		seq_auth_memcmp((a), (b), (len))

Definition at line 49 of file seq_auth.c.

SEQ_AUTH_TAG_CAP

#define SEQ_AUTH_TAG_CAP   CWIST_SHA256_DIGEST_LEN

Definition at line 30 of file seq_auth.c.

SEQ_AUTH_WASM_CRYPTO

#define SEQ_AUTH_WASM_CRYPTO   1

Definition at line 29 of file seq_auth.c.

Function Documentation

cwist_seq_auth_context_create()

cwist_seq_auth_context_t * cwist_seq_auth_context_create	(	const uint8_t	key[CWIST_SEQ_AUTH_KEY_SIZE],
		const uint8_t	session_id[CWIST_SEQ_AUTH_SESSION_ID_SIZE],
		size_t	replay_window
	)

Create an authenticated-sequencing context.

Allocates the context plus the nonce and completed-message-id replay caches, each sized to replay_window entries. On failure all partially allocated state is freed and NULL is returned. The returned context is owned by the caller and must be released with cwist_seq_auth_context_destroy().

Parameters

key	32-byte authentication key, copied into the context.
session_id	16-byte session identifier, copied into the context.
replay_window	Number of nonces/message ids to remember for replay detection; must be non-zero and small enough that window * 28 does not overflow size_t.

Returns

New context, or NULL on invalid arguments or allocation failure.

Definition at line 237 of file seq_auth.c.

References cap, cwist_alloc(), cwist_alloc_array(), cwist_free(), cwist_seq_auth_context_destroy(), CWIST_SEQ_AUTH_MESSAGE_ID_SIZE, and CWIST_SEQ_AUTH_NONCE_SIZE.

cwist_seq_auth_context_destroy()

void cwist_seq_auth_context_destroy

(

cwist_seq_auth_context_t *

ctx

)

Destroy an authenticated-sequencing context.

Wipes the key and session id, destroys the mutex, and frees the replay caches and the context itself. Safe to call with NULL.

Parameters

ctx	Context to release, or NULL.

Definition at line 268 of file seq_auth.c.

References cap, cwist_free(), and SEQ_AUTH_CLEANSE.

Referenced by cwist_seq_auth_context_create().

cwist_seq_auth_mark_complete()

void cwist_seq_auth_mark_complete	(	cwist_seq_auth_context_t *	ctx,
		const uint8_t	message_id[CWIST_SEQ_AUTH_MESSAGE_ID_SIZE]
	)

Record a message id as fully received.

Adds the message id to the completed-message replay cache so any later chunk claiming that id is rejected by cwist_seq_auth_unwrap(). Duplicate ids are ignored. Safe to call with NULL; otherwise takes the context lock.

Parameters

ctx	Authenticated-sequencing context, or NULL.
message_id	16-byte message id to record.

Definition at line 418 of file seq_auth.c.

References cap, and CWIST_SEQ_AUTH_MESSAGE_ID_SIZE.

cwist_seq_auth_random()

bool cwist_seq_auth_random	(	uint8_t *	out,
		size_t	len
	)

Fill a buffer with cryptographically secure random bytes.

Source is crypto.getRandomValues on Emscripten, getentropy under WASI, the firmware TRNG (cwist_port_entropy) on bare metal, and OpenSSL RAND_bytes elsewhere.

Parameters

out	Output buffer.
len	Number of bytes to write; must be non-zero and at most INT_MAX.

Return values

true	The buffer was filled successfully.
false	Invalid arguments or the random source failed.

Definition at line 290 of file seq_auth.c.

References cap, cwist_port_entropy(), and RAND_bytes.

cwist_seq_auth_unwrap()

bool cwist_seq_auth_unwrap	(	cwist_seq_auth_context_t *	ctx,
		const uint8_t *	data,
		size_t	len,
		cwist_seq_auth_metadata_t *	metadata,
		cwist_seq_chunk_t *	chunk
	)

Verify, authenticate, and split an incoming authenticated chunk.

Validates the chunk layout, recomputes the HMAC-SHA256 tag (compared in constant time), and rejects replays by checking the nonce and message id against the context's replay caches under the context lock; a fresh nonce is recorded in the cache on success. Chunks of fully completed messages can be rejected by recording their ids with cwist_seq_auth_mark_complete().

Parameters

ctx	Authenticated-sequencing context.
data	Wire-format authenticated chunk.
len	Length of data in bytes.
metadata	Receives the verified message id and nonce.
chunk	Receives the parsed chunk header and a payload pointer into data; untouched on failure.

Return values

true	The tag is valid and the chunk is not a replay.
false	Invalid arguments, malformed chunk, bad tag, or replayed nonce/message id.

Definition at line 374 of file seq_auth.c.

References cap, CWIST_SEQ_AUTH_HEADER_SIZE, CWIST_SEQ_AUTH_MESSAGE_ID_SIZE, CWIST_SEQ_AUTH_NONCE_SIZE, CWIST_SEQ_AUTH_TAG_SIZE, CWIST_SEQ_HEADER_SIZE, SEQ_AUTH_MEMCMP, and SEQ_AUTH_TAG_CAP.

cwist_seq_auth_wrap()

bool cwist_seq_auth_wrap	(	const cwist_seq_auth_context_t *	ctx,
		const uint8_t	message_id[CWIST_SEQ_AUTH_MESSAGE_ID_SIZE],
		const uint8_t	nonce[CWIST_SEQ_AUTH_NONCE_SIZE],
		const uint8_t *	chunk,
		size_t	chunk_len,
		uint8_t **	out,
		size_t *	out_len
	)

Attach message id, nonce, and authentication tag to a chunk.

Builds the wire-format authenticated chunk (sequence header || message id || nonce || payload || tag) without modifying the caller's chunk. The tag is an HMAC-SHA256 truncated to CWIST_SEQ_AUTH_TAG_SIZE over the session id and the header/payload contents. The output buffer is owned by the caller and must be freed with cwist_free().

Parameters

ctx	Authenticated-sequencing context.
message_id	16-byte message identifier to embed.
nonce	12-byte nonce to embed.
chunk	Buffer holding one sequence chunk (header + payload).
chunk_len	Length of chunk in bytes.
out	Receives a newly allocated wire-format chunk on success.
out_len	Receives the wire chunk length on success.

Return values

true	The chunk was authenticated and wrapped.
false	Invalid arguments, malformed chunk, allocation failure, or tag computation failure; no output is produced.

Definition at line 323 of file seq_auth.c.

References cap, cwist_alloc(), cwist_free(), CWIST_SEQ_AUTH_HEADER_SIZE, CWIST_SEQ_AUTH_MESSAGE_ID_SIZE, CWIST_SEQ_AUTH_NONCE_SIZE, CWIST_SEQ_AUTH_TAG_SIZE, cwist_seq_chunk_parse(), CWIST_SEQ_HEADER_SIZE, and SEQ_AUTH_TAG_CAP.
