gRPC client channel: name resolution (doc/naming.md), client-side load balancing (doc/load-balancing.md), connection backoff (doc/connection-backoff.md), and the gRFC A6 retry engine. More...

#include <cwist/net/grpc/grpc_channel.h>
#include <cwist/core/mem/alloc.h>
#include <cjson/cJSON.h>
#include <arpa/inet.h>
#include <netdb.h>
#include <pthread.h>
#include <stdlib.h>
#include <string.h>
#include <strings.h>
#include <time.h>
#include <unistd.h>

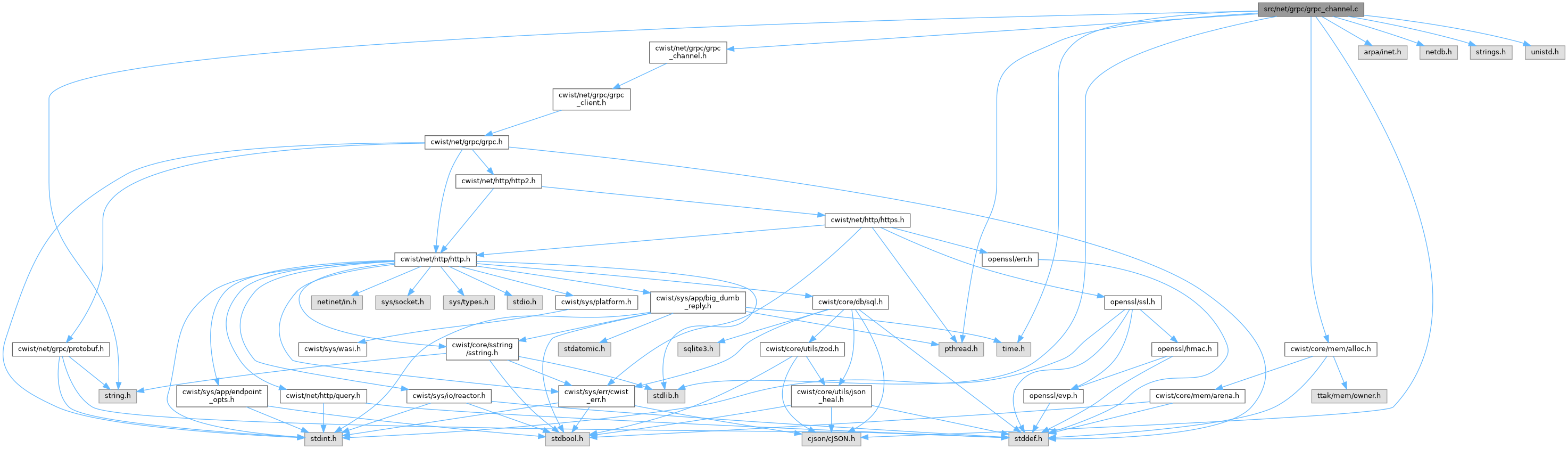

Include dependency graph for grpc_channel.c:

Go to the source code of this file.

Macros
#define	_POSIX_C_SOURCE 200809L

#define	GRPC_CHANNEL_MAX_ADDRS 64

#define	GRPC_CHANNEL_DEFAULT_BUFFER_LIMIT (256u * 1024u)

#define	GRPC_CHANNEL_MAX_ATTEMPTS_CAP 5

#define	GRPC_CHANNEL_CONN_BACKOFF_INITIAL_MS 1000.0

#define	GRPC_CHANNEL_CONN_BACKOFF_MULTIPLIER 1.6

#define	GRPC_CHANNEL_CONN_BACKOFF_MAX_MS 120000.0

#define	GRPC_CHANNEL_CONN_BACKOFF_JITTER 0.2

Typedefs
typedef struct cwist_grpc_subchannel	cwist_grpc_subchannel

typedef struct grpc_method_config	grpc_method_config

Functions
cwist_grpc_channel_call *	cwist_grpc_channel_call_start (cwist_grpc_channel ch, const char method, const void *request, size_t request_len, uint64_t timeout_ms)
	Start a unary RPC through the channel, running the gRFC A6 retry engine transparently across attempts.

int	cwist_grpc_channel_call_recv (cwist_grpc_channel_call cc, cwist_grpc_message out)
	Receive the next response message of a channel call.

cwist_grpc_status_t	cwist_grpc_channel_call_finish (cwist_grpc_channel_call cc, const char *message)
	Finish a channel call and return its final gRPC status.

void	cwist_grpc_channel_call_cancel (cwist_grpc_channel_call *cc)
	Cancel the underlying attempt call, if it reached the transport.

void	cwist_grpc_channel_call_destroy (cwist_grpc_channel_call *cc)
	Destroy a channel call and release its resources.

uint32_t	cwist_grpc_channel_call_attempts (const cwist_grpc_channel_call *cc)
	Number of policy attempts a channel call used (transparent retries excluded).

cwist_grpc_status_t	cwist_grpc_channel_unary (cwist_grpc_channel ch, const char method, const void request, size_t request_len, uint64_t timeout_ms, uint8_t response, size_t response_len, char **status_message)
	Convenience blocking unary RPC: start, read one response, finish.

cwist_grpc_channel *	cwist_grpc_channel_connect (const char target, const cwist_grpc_channel_options options)
	Create a channel for `target` and resolve its backend addresses.

void	cwist_grpc_channel_close (cwist_grpc_channel *ch)
	Close a channel and free all its resources.

cwist_grpc_channel_state	cwist_grpc_channel_get_state (cwist_grpc_channel *ch)
	Aggregate connectivity state across subchannels (load-balancing.md).

int	cwist_grpc_channel_apply_service_config_json (cwist_grpc_channel ch, const char json)
	Apply a JSON service config (doc/service_config.md subset, gRFC A6).

Detailed Description

gRPC client channel: name resolution (doc/naming.md), client-side load balancing (doc/load-balancing.md), connection backoff (doc/connection-backoff.md), and the gRFC A6 retry engine.

Layout mirrors gRPC: channel -> resolver -> subchannels (one per backend address) -> LB policy -> per-call pick. Retries live between the channel and the LB policy so every attempt can use a different subchannel (A6).

Retry engine notes (all gRFC A6):

The call deadline spans every attempt; each attempt's grpc-timeout header carries the remaining time.
A failed LB pick (TRANSIENT_FAILURE) is handled by the configured retry policy; with wait_for_ready the call waits instead of failing.
An RPC that never left the client is transparently retried until the deadline; an RPC refused before reaching server application logic (RST REFUSED_STREAM or GOAWAY last-stream-id below ours) gets one immediate transparent retry, then the configured policy. Transparent retries never count against maxAttempts nor the retry throttle.
Once Response-Headers arrive the RPC is committed and no retry happens.
Throttle bookkeeping: every failed attempt with a retryable-coded status (or a do-not-retry pushback) costs one token; a successful call refunds token_ratio once. Transparent retries are not counted.

Definition in file grpc_channel.c.

Macro Definition Documentation

◆ _POSIX_C_SOURCE

#define _POSIX_C_SOURCE 200809L

Definition at line 27 of file grpc_channel.c.

◆ GRPC_CHANNEL_CONN_BACKOFF_INITIAL_MS

#define GRPC_CHANNEL_CONN_BACKOFF_INITIAL_MS 1000.0

Definition at line 45 of file grpc_channel.c.

◆ GRPC_CHANNEL_CONN_BACKOFF_JITTER

#define GRPC_CHANNEL_CONN_BACKOFF_JITTER 0.2

Definition at line 48 of file grpc_channel.c.

◆ GRPC_CHANNEL_CONN_BACKOFF_MAX_MS

#define GRPC_CHANNEL_CONN_BACKOFF_MAX_MS 120000.0

Definition at line 47 of file grpc_channel.c.

◆ GRPC_CHANNEL_CONN_BACKOFF_MULTIPLIER

#define GRPC_CHANNEL_CONN_BACKOFF_MULTIPLIER 1.6

Definition at line 46 of file grpc_channel.c.

◆ GRPC_CHANNEL_DEFAULT_BUFFER_LIMIT

#define GRPC_CHANNEL_DEFAULT_BUFFER_LIMIT (256u * 1024u)

Definition at line 41 of file grpc_channel.c.

◆ GRPC_CHANNEL_MAX_ADDRS

#define GRPC_CHANNEL_MAX_ADDRS 64

Definition at line 40 of file grpc_channel.c.

◆ GRPC_CHANNEL_MAX_ATTEMPTS_CAP

#define GRPC_CHANNEL_MAX_ATTEMPTS_CAP 5

Definition at line 42 of file grpc_channel.c.

Typedef Documentation

◆ cwist_grpc_subchannel

typedef struct cwist_grpc_subchannel cwist_grpc_subchannel

◆ grpc_method_config

typedef struct grpc_method_config grpc_method_config

Function Documentation

◆ cwist_grpc_channel_apply_service_config_json()

int cwist_grpc_channel_apply_service_config_json	(	cwist_grpc_channel *	ch,
		const char *	json
	)

Apply a JSON service config (doc/service_config.md subset, gRFC A6).

Parses loadBalancingConfig (first supported policy wins; deprecated loadBalancingPolicy string also accepted), retryThrottling, and methodConfig (retryPolicy, waitForReady, timeout per name; hedgingPolicy entries carry no policy, as in gRPC C-core). The whole document is validated before anything is swapped in; on error the channel is left untouched.

Return values

0	applied
-1	invalid JSON, invalid document, or allocation failure

Definition at line 1140 of file grpc_channel.c.

References cap, cwist_alloc(), cwist_free(), CWIST_GRPC_LB_PICK_FIRST, CWIST_GRPC_LB_ROUND_ROBIN, cwist_grpc_retry_throttle::max_tokens, and cwist_grpc_retry_throttle::token_ratio.

◆ cwist_grpc_channel_call_attempts()

uint32_t cwist_grpc_channel_call_attempts ( const cwist_grpc_channel_call * call )

Number of policy attempts a channel call used (transparent retries excluded).

Number of RPC attempts made (transparent retries excluded, gRFC A6).

Definition at line 685 of file grpc_channel.c.

References cap.

◆ cwist_grpc_channel_call_cancel()

void cwist_grpc_channel_call_cancel ( cwist_grpc_channel_call * cc )

Cancel the underlying attempt call, if it reached the transport.

Definition at line 658 of file grpc_channel.c.

References cap, and cwist_grpc_call_cancel().

◆ cwist_grpc_channel_call_destroy()

void cwist_grpc_channel_call_destroy ( cwist_grpc_channel_call * cc )

Destroy a channel call and release its resources.

Performs the end-of-call throttle accounting first if finish() did not already. Destroys the underlying call, recycles/releases the subchannel, and frees the handle. NULL-safe.

Definition at line 668 of file grpc_channel.c.

References cap, cwist_free(), cwist_grpc_call_destroy(), and cwist_grpc_call_status().

Referenced by cwist_grpc_channel_unary().

◆ cwist_grpc_channel_call_finish()

cwist_grpc_status_t cwist_grpc_channel_call_finish	(	cwist_grpc_channel_call *	cc,
		const char **	message
	)

Finish a channel call and return its final gRPC status.

Performs the end-of-call throttle accounting once, if not already done by destroy. For synthetic results, returns the pre-dispatch status and message. message is borrowed (valid until the call is destroyed) and may be NULL.

Definition at line 637 of file grpc_channel.c.

References cap, cwist_grpc_call_finish(), and CWIST_GRPC_INTERNAL.

Referenced by cwist_grpc_channel_unary().

◆ cwist_grpc_channel_call_recv()

int cwist_grpc_channel_call_recv	(	cwist_grpc_channel_call *	cc,
		cwist_grpc_message *	out
	)

Receive the next response message of a channel call.

Synthetic (pre-dispatch failure) results carry no messages.

Return values

1	a message was stored in `out`
0	stream ended (or synthetic result), no more messages
-1	invalid arguments

Definition at line 624 of file grpc_channel.c.

References cap, and cwist_grpc_call_recv().

Referenced by cwist_grpc_channel_unary().

◆ cwist_grpc_channel_call_start()

cwist_grpc_channel_call * cwist_grpc_channel_call_start	(	cwist_grpc_channel *	ch,
		const char *	method,
		const void *	request,
		size_t	request_len,
		uint64_t	timeout_ms
	)

Start a unary RPC through the channel, running the gRFC A6 retry engine transparently across attempts.

Applies the most specific JSON method config (retry policy, waitForReady, timeout), clamps attempts to GRPC_CHANNEL_MAX_ATTEMPTS_CAP, and retries only while the request fits the per-RPC buffer limit. Blocks until the RPC is committed (Response-Headers or final result), fails with CWIST_GRPC_DEADLINE_EXCEEDED past the deadline, or waits instead of failing when waitForReady is set and no subchannel is ready.

Parameters

method	"/package.Service/Method" path
request,request_len	serialized request (may be NULL when 0)
timeout_ms	per-call deadline, 0 for none (a method-config timeout may shorten it)

Returns: channel call handle, or NULL on invalid arguments/allocation failure

Definition at line 466 of file grpc_channel.c.

References cwist_grpc_retry_policy::backoff_multiplier, cap, cwist_grpc_call_await_headers(), cwist_grpc_call_destroy(), cwist_grpc_call_refused(), cwist_grpc_call_retry_pushback_ms(), cwist_grpc_call_start_ex(), cwist_grpc_call_status(), CWIST_GRPC_DEADLINE_EXCEEDED, CWIST_GRPC_OK, CWIST_GRPC_STATUS_BIT, CWIST_GRPC_UNAVAILABLE, GRPC_CHANNEL_MAX_ATTEMPTS_CAP, cwist_grpc_retry_policy::initial_backoff_ms, cwist_grpc_retry_policy::max_attempts, cwist_grpc_retry_policy::max_backoff_ms, and cwist_grpc_retry_policy::retryable_status_mask.

Referenced by cwist_grpc_channel_unary().

◆ cwist_grpc_channel_close()

void cwist_grpc_channel_close ( cwist_grpc_channel * ch )

Close a channel and free all its resources.

Calls handed out must be destroyed before closing the channel. NULL-safe.

Definition at line 979 of file grpc_channel.c.

References cap, cwist_free(), and cwist_grpc_client_close().

Referenced by cwist_grpc_channel_connect().

◆ cwist_grpc_channel_connect()

cwist_grpc_channel * cwist_grpc_channel_connect	(	const char *	target,
		const cwist_grpc_channel_options *	options
	)

Create a channel for target and resolve its backend addresses.

Supported targets: "dns:name" (a "//authority/" prefix is ignored, as in gRPC C-core), "ipv4:1.2.3.4:port,...", "ipv6:[...]:port,...", and a bare name (treated as dns:). unix:, unix-abstract:, and vsock: are not implemented and fail. round_robin dials every address up front; pick_first stays IDLE until the first RPC.

Parameters

options may be NULL for defaults; see cwist_grpc_channel_options

Returns: the new channel, or NULL on any failure (fully cleaned up)

Definition at line 901 of file grpc_channel.c.

◆ cwist_grpc_channel_get_state()

cwist_grpc_channel_state cwist_grpc_channel_get_state ( cwist_grpc_channel * ch )

Aggregate connectivity state across subchannels (load-balancing.md).

READY if any subchannel is connected, else IDLE while any subchannel may dial, else TRANSIENT_FAILURE. NULL maps to SHUTDOWN. Thread-safe: takes ch->mu.

Definition at line 1001 of file grpc_channel.c.

References cap, CWIST_GRPC_CHANNEL_IDLE, CWIST_GRPC_CHANNEL_READY, CWIST_GRPC_CHANNEL_SHUTDOWN, CWIST_GRPC_CHANNEL_TRANSIENT_FAILURE, and cwist_grpc_client_dead().

◆ cwist_grpc_channel_unary()

cwist_grpc_status_t cwist_grpc_channel_unary	(	cwist_grpc_channel *	ch,
		const char *	method,
		const void *	request,
		size_t	request_len,
		uint64_t	timeout_ms,
		uint8_t **	response,
		size_t *	response_len,
		char **	status_message
	)

Convenience blocking unary RPC: start, read one response, finish.

On CWIST_GRPC_OK the first response message is copied into response (caller-owned; freed with cwist_free) with its length in response_len; extra messages are discarded. On any other status the response is freed and NULL/0 is returned. Output pointers may be NULL to discard the corresponding value. status_message, when non-NULL on entry, receives an allocated copy of the server status message.

Returns: the final gRPC status (CWIST_GRPC_INTERNAL if the call could not start)

Definition at line 700 of file grpc_channel.c.

References cap, cwist_alloc(), cwist_free(), cwist_grpc_channel_call_destroy(), cwist_grpc_channel_call_finish(), cwist_grpc_channel_call_recv(), cwist_grpc_channel_call_start(), CWIST_GRPC_INTERNAL, and CWIST_GRPC_OK.
